View larger
Images are for illustrative purposes only. Please refer to data sheet for details

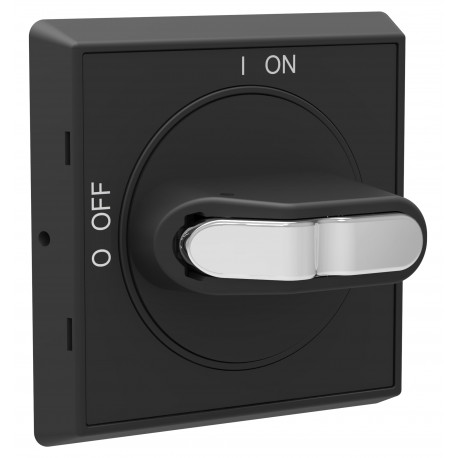

1SCA109371R1001 ABB Mando OHBS2PJEH
1SCA109371R1001
109371
ABB
1 Pcs.
Mando OHBS2PJEH
Controller OHBS2PJEH
OHBS2PJEH HANDLE
Automation > Handle for power circuit breaker
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | No documentation needed |
| Instructions and Manuals | 1SCC390064M0004 |
| Mechanical Drawings | 1SCC390175F0001 |
| 1SCC390174F0001 | |
| OH_S2PJ_palikka.igs | |
| Environmental | |
| Degree of Protection | IP65 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 65 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 59 mm |
| Product Net Weight | 0.055 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 65 mm |
| Package Level 1 Depth / Length | 65 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Gross Weight | 0.06 kg |
| Package Level 1 EAN | 6417019425412 |
| Technical | |
| Color | Black |
| Degree of Protection | IP65 |
| Handle Color | Black |
| Handle Type | Selector |
| Special Functions | EH |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390030D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 31162801 |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| eClass | V11.1 : 27370414 |
| WEEE Category | Product Not in WEEE Scope |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Black |
| Suitable for emergency stop (EF001433) | No |
| With extension shaft (EF001434) | No |
| Suitable for power circuit breaker (EF005863) | No |
| Suitable for switch disconnector (EF007252) | Yes |
