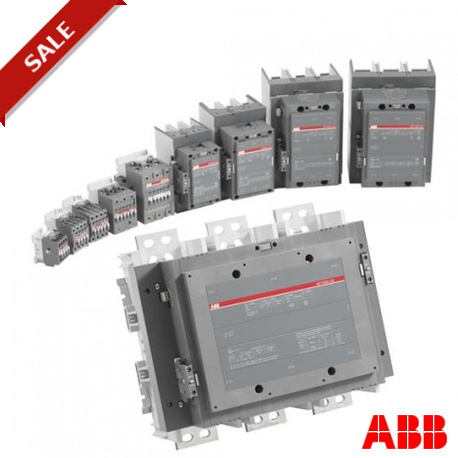

ABB 1SFN166103R1000 1SFN166103R1000 ABB MAIN CONTACTS ZL580 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN166103R1000 ABB MAIN CONTACTS ZL580

1SFN166103R1000

166103

ABB

1 Pcs.

MAIN CONTACTS#ZL580 ZL580 CONTACT SET for AF580

Automation > Accessories/spare parts for low-voltage switch technology
connectors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB 1SFN166103R1000 replacement main contact set provides the conductive contacts required for heavy-duty contactors handling massive electrical loads. Swapping worn contact assemblies restores optimal electrical conductivity and extends the service life of high-power switching gear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q2
  • Product Main Type: ZL580
  • Product Name: CONTACTOR
  • Suitable For: AF580
  • Suitable for Product Class: CONTACTORS
  • Terminal Type: Screw Terminals
  • Data Sheet, Technical Information: 1SBC100122C0202
  • RoHS Information: 1SFC101049D0203
  • E-nummer: 3229324
  • Product Net Weight: 1.84 kg
  • EAN: 7320500222386
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 120 mm
  • Package Level 1 Height: 38 mm

More info

▲

3 pole main contact set for a contactor consisting of fixed contacts, moving contacts, springs and hardware

Ordering

  • EAN:
    7320500222386
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85389099

Dimensions

  • Product Net Weight:
    1.84kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    120 mm
  • Package Level 1 Height:
    38 mm
  • Package Level 1 Length:
    220 mm
  • Package Level 1 Gross Weight:
    1.84 kg

Environmental

  • RoHS Status:
    Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q2

Additional Information

  • Product Main Type:
    ZL580
  • Product Name:
    CONTACTOR
  • Suitable For:
    AF580
  • Suitable for Product Class:
    CONTACTORS
  • Terminal Type:
    Screw Terminals

Certificates and Declarations (Document Number)

Classifications

  • E-nummer:
    3229324
  • UNSPSC:
    39121529

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
