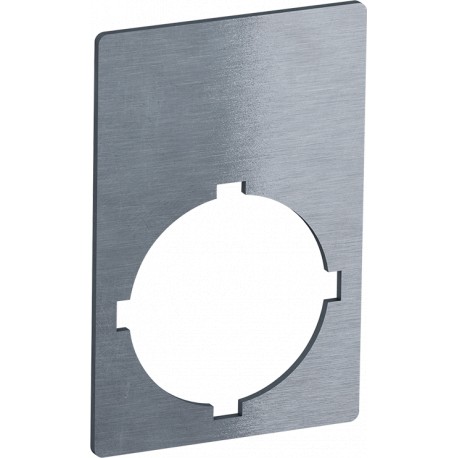

1SFA611940R1001 ABB MA16-1001 Legend plate
1SFA611940R1001
611940
ABB
10 Pcs.
Automation > Legend plate for control circuit devices
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SFA611940R1001 legend plate provides clear functional identification for pilot devices mounted on industrial control panels. These durable aluminum marker plates install beneath push buttons and switches to designate specific operating parameters for automation machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Product Main Type: MA16
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC212129_EPLAN
- Product Net Width: 0.03 m
- Product Net Depth / Length: 0.001 m
- Product Net Height: 0.045 m
- Product Net Weight: 0.001 kg
- Accessory Type: Legend plates
- Color: Aluminum
- Suitable For: MP1
- Suitable for Product Class: Pilot Devices
- Ambient Air Temperature: Operation -25 ... +70 °C
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Product Main Type | MA16 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC212129_EPLAN |
| Dimensions | |
| Product Net Width | 0.03 m |
| Product Net Depth / Length | 0.001 m |
| Product Net Height | 0.045 m |
| Product Net Weight | 0.001 kg |
| Technical | |
| Accessory Type | Legend plates |
| Color | Aluminum |
| Suitable For | MP1 |
| MP2 | |
| MP3 | |
| MP4 | |
| CP1 | |
| CP2 | |
| CP3 | |
| CP4 | |
| M2SS1 | |
| M2SS2 | |
| M2SS3 | |
| M3SS1 | |
| M3SS2 | |
| M3SS3 | |
| M3SS7 | |
| M3SSC1 | |
| M3SSC2 | |
| M3SSC3 | |
| M3SSC7 | |
| M4SS1 | |
| C2SS1 | |
| C2SS2 | |
| C2SS3 | |
| C3SS1 | |
| C3SS2 | |
| C3SS3 | |
| C3SS7 | |
| ML1 | |
| CL | |
| CL2 | |
| MPM1 | |
| CPM3 | |
| Suitable for Product Class | Pilot Devices |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Material | Aluminum |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMT2019-005805 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| Container Information | |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 0.1 m |
| Package Level 1 Depth / Length | 0.1 m |
| Package Level 1 Height | 0.005 m |
| Package Level 1 Gross Weight | 0.016 kg |
| Package Level 1 EAN | 7320500372807 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371224 |
| E-Number (Sweden) | 3708072 |
| ETIM 6 | EC000621 - Legend plate for control circuit devices |
| ETIM 7 | EC000621 - Legend plate for control circuit devices |
| ETIM 8 | EC000621 - Legend plate for control circuit devices |
| ETIM 9 | EC000621 - Legend plate for control circuit devices |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | S |
| UNSPSC | 39122221 |
