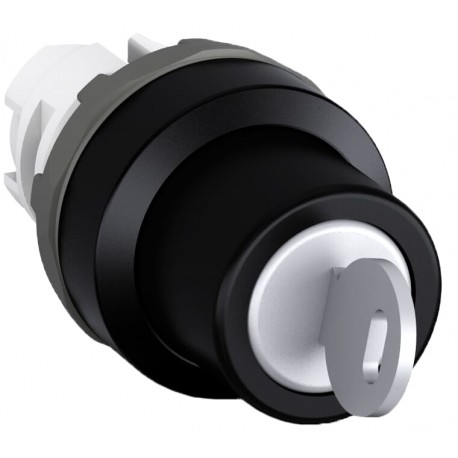

1SFA611284R1004 ABB M3SSK2-104 Selector Switch
1SFA611284R1004
611284
ABB
1 Pcs.
Automation > Front element for selector switch
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb M3SSK2-104 Selector Switch (part 1SFA611284R1004) is a key-operated control component used to govern electrical circuits and prevent unauthorized mode changes on industrial equipment. Key switches are frequently installed on automation machinery, security systems, and electrical panels to ensure that only authorized personnel can alter system operational parameters.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 25 piece
- Customs Tariff Number: 8536501999
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Marketing Video: 1SFC151037V0001
- Product Net Width: 0.03 m
- Product Net Height: 0.03 m
- Product Net Depth / Length: 0.063 m
- Product Net Weight: 0.045 kg
- Ambient Air Temperature: Operation -25 ... +70 °C
- Color: Black/Key
- Actuator Type: Key
- Bezel Material: Plastic
- Illumination: Non-illuminated
- Function: Maintained
- Sub-Function: 3-position
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 25 piece |
| Customs Tariff Number | 8536501999 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Marketing Video | 1SFC151037V0001 |
| Dimensions | |
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.063 m |
| Product Net Weight | 0.045 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Black/Key |
| Actuator Type | Key |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 3-position |
| Maintained Positions | A, B, C |
| Key Removal Positions | Position B Only |
| Key Code | Different key code |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Mechanical Durability | 0.5 million |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cULus Certificate | 9AKK107046A9925 |
| Declaration of Conformity - CE | 2CMT2015-005452 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 25 piece |
| Package Level 1 Width | 0.165 m |
| Package Level 1 Depth / Length | 0.25 m |
| Package Level 1 Height | 0.2 m |
| Package Level 1 Gross Weight | 1.137 kg |
| Package Level 1 EAN | 7320500305300 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 6 | EC000222 - Front element for selector switch |
| ETIM 7 | EC000222 - Front element for selector switch |
| ETIM 8 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39121500 |
