ABB 1SFA611281R1001 1SFA611281R1001 ABB M2SSK2-101 Selector Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

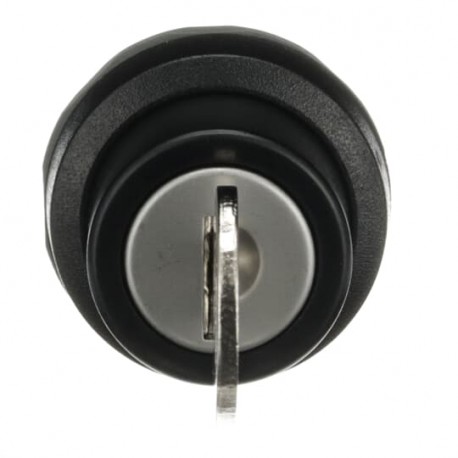

1SFA611281R1001 ABB M2SSK2-101 Selector Switch

1SFA611281R1001

611281

ABB

1 Pcs.

M2SSK2-101 Selector Switch KEY SELECTOR M2SSK2-101

Automation > Front element for selector switch
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB M2SSK2-101 selector switch integrates a key-lock mechanism into electrical control desks to prevent unauthorized activation of industrial processes. It serves as a dependable input device for machinery requiring secure configuration management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536508000
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Marketing Video: 1SFC151037V0001
  • Product Net Width: 0.03 m
  • Product Net Height: 0.03 m
  • Product Net Depth / Length: 0.063 m
  • Product Net Weight: 0.045 kg
  • Ambient Air Temperature: Operation -25 ... +70 °C
  • Color: Black/Key
  • Actuator Type: Key
  • Bezel Material: Plastic
  • Illumination: Non-illuminated
  • Function: Maintained
  • Sub-Function: 2-position

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Marketing Video1SFC151037V0001
Dimensions
Product Net Width0.03 m
Product Net Height0.03 m
Product Net Depth / Length0.063 m
Product Net Weight0.045 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorBlack/Key
Actuator TypeKey
Bezel MaterialPlastic
IlluminationNon-illuminated
FunctionMaintained
Sub-Function2-position
Maintained PositionsB, C
Key Removal PositionsPosition B Only
Key CodeRonis 455, Key code 71
Enclosure Type NEMAType1
Type12
Type3R
Type4
Type4X
Mechanical Durability0.5 million
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cULus Certificate9AKK107046A9925
Declaration of Conformity - CE2CMT2015-005452
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL CertificateE-14107
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width0.11 m
Package Level 1 Depth / Length0.15 m
Package Level 1 Height0.03 m
Package Level 1 Gross Weight0.069 kg
Package Level 1 EAN7320500304501
External Classifications and Standards
Object Classification CodeS
ETIM 6EC000222 - Front element for selector switch
ETIM 7EC000222 - Front element for selector switch
ETIM 8EC000222 - Front element for selector switch
eClassV11.0 : 27371213
UNSPSC39122217
IDEA Granular Category Code (IGCC)5215 >> Selector Switch Complete Assemblies
E-Number (Finland)2338423
E-Number (Sweden)3715605

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
