1SFA611203R1006 ABB M2SS4-10B Selector Switch
1SFA611203R1006
611203
ABB
1 Pcs.
Automation > Front element for selector switch
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

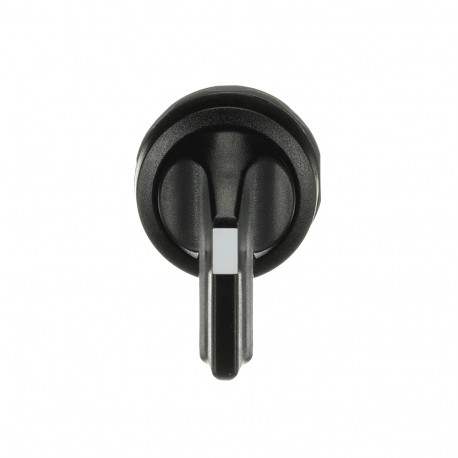

Abb 1SFA611203R1006 is a black plastic selector switch equipped with a long handle for maintained operation across two positions. Selector switches are commonly integrated into machinery dashboards to manually direct electrical signals and switch between distinct operational states.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Marketing Video: 1SFC151037V0001
- Product Net Width: 0.048 m
- Product Net Height: 0.03 m
- Product Net Depth / Length: 0.05 m
- Product Net Weight: 0.025 kg
- Ambient Air Temperature: Operation -25 ... +70 °C
- Color: Black
- Actuator Type: Long handle
- Bezel Material: Plastic
- Illumination: Non-illuminated
- Function: Maintained
- Sub-Function: 2-position
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Marketing Video | 1SFC151037V0001 |
| Dimensions | |
| Product Net Width | 0.048 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.05 m |
| Product Net Weight | 0.025 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Black |
| Actuator Type | Long handle |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 2-position |
| Maintained Positions | B, C |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Mechanical Durability | 0.5 million |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cULus Certificate | 9AKK107046A9925 |
| Declaration of Conformity - CE | 2CMT2015-005452 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.11 m |
| Package Level 1 Depth / Length | 0.15 m |
| Package Level 1 Height | 0.03 m |
| Package Level 1 Gross Weight | 0.025 kg |
| Package Level 1 EAN | 7320500288344 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 6 | EC000222 - Front element for selector switch |
| ETIM 7 | EC000222 - Front element for selector switch |
| ETIM 8 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| IDEA Granular Category Code (IGCC) | 5215 >> Selector Switch Complete Assemblies |
| E-Number (Finland) | 2338217 |
| E-Number (Norway) | 4372306 |
| E-Number (Sweden) | 3715715 |
