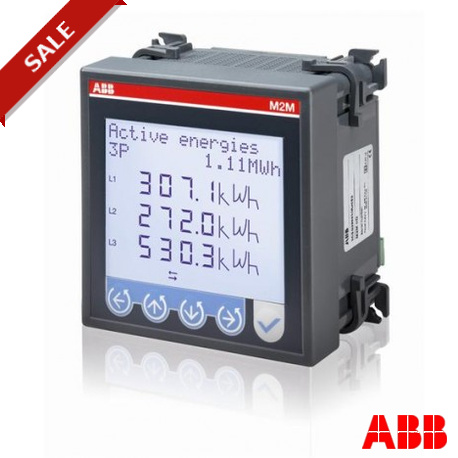

M2M 2CSG299883R4052 ABB M2M Network analyser
M2M
2CSG299883R4052
ABB
1 Pcs.
Automation > Power quality analyser
M2M network analyzers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A digital network analyser, specifically the ABB M2M network analyser, measures and displays critical electrical parameters across industrial power distribution networks. Front-panel instruments of this class are installed in electrical switchboards to monitor voltage, current, power factor, and harmonic distortion. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Meter Type: Digital
- Mounting Type: Front-panel
- Rated Operational Voltage: 10 ... 500 V AC
- Options Provided: Total harmonic distortion (THD)
- I/O Option: 2 digital output
- Power Loss: at Rated Operating Conditions per Pole 7 W
- Ambient Air Temperature: Operation -5 ... +5 °C
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- RoHS Information: 2CSC445023K2703
- Product Net Width: 0.096 m
- Product Net Height: 0.096 m
- Product Net Depth: 0.110 m
- Product Net Weight: 0.300 kg
- Dimensions: 96 mm x 96 mm
- EAN: 8012542998839
- Minimum Order Quantity: 1 piece
More info
▲M2M is a network analyser with 2 digital outputs, aux supply 24- 230 V a.c./d.c.
Ordering
- EAN:
- 8012542998839
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 90303100
Dimensions
- Product Net Width:
- 0.096m
- Product Net Height:
- 0.096m
- Product Net Depth:
- 0.110m
- Product Net Weight:
- 0.300kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.11 m
- Package Level 1 Height:
- 0.23 m
- Package Level 1 Length:
- 0.155 m
- Package Level 1 Gross Weight:
- 0.5 kg
- Package Level 1 EAN:
- 8012542998839
Technical
- Meter Type:
- Digital
- Mounting Type:
- Front-panel
- Dimensions:
- 96 mm x 96 mm
- Rated Operational Voltage:
- 10 ... 500 V AC
- Options Provided:
- Total harmonic distortion (THD)
- I/O Option:
- 2 digital output
- Power Loss:
- at Rated Operating Conditions per Pole 7 W
Environmental
- Ambient Air Temperature:
- Operation -5 ... +5 °C
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- ITSCE188M2M
- RoHS Information:
- 2CSC445023K2703
Classifications
- Object Classification Code:
- P
- ETIM 4:
- EC001194 - Power quality analyzer
- ETIM 5:
- EC001194 - Power quality analyzer
