View larger
Images are for illustrative purposes only. Please refer to data sheet for details

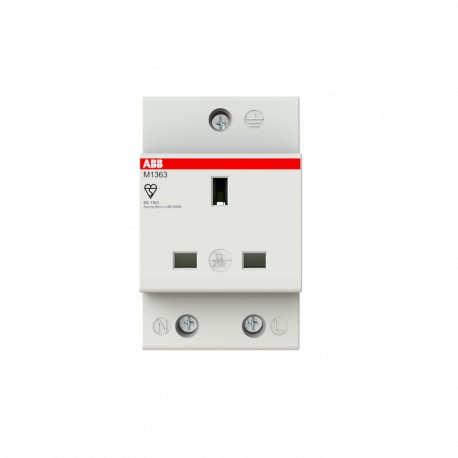

2CSM259343R0721 ABB M1363 Modular socket: British Standard
2CSM259343R0721
259343
ABB
1 Pcs.
M1363 Modular socket: British Standard
British M1363 Modular Base Grey
M1363 Socket outlet
Automation > Socket outlet for distribution board
Measure, various ITSCE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Active Pin Terminals | 2 |
| Tightening Torque | 1.2 N·m |
| Product Type | British Standard |
| Options Provided | Safety shutters |
| Cable Cross-Section | Minimum 2.5 mm² |
| Maximum 16 mm² | |
| Connecting Capacity | Rigid Cu-Cable 2.5 ... 16 mm² |
| Electrical | |
| Rated Voltage (Ur) | 250 V AC |
| Rated Current (In) | 13 A |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 0.6 W |
| Design | |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK107492A6968 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250225 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25…+35 °C |
| Storage -40…+70 °C | |
| Degree of Protection | IP20 |
| Environmental Information | 9AKK108471A0778 |
| Dimensions | |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 53 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 0.095 kg |
| Built-In Depth (t2) | 60 mm |
| Dimension Diagram | 9AKK108471A1165 |
| Ordering | |
| Package Level 1 Units | 2 piece |
| Package Level 1 Gross Weight | 0.222 kg |
| E-Number (Finland) | 2519800 |
| E-Number (Sweden) | 2100359 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107492A6968 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC001663 - Socket outlet for distribution board |
| ETIM 10 | EC001663 - Socket outlet for distribution board |
| UNSPSC | 39121406 |
| eClass | V11.0 : 27142305 |
| IDEA Granular Category Code (IGCC) | 4536 >> Electrical receptacles |
| Object Classification Code | X |
| Certification Agency | BSI |
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 13 A |
| With hinged lid (EF000117) | No |
| With enhanced contact protection (EF000389) | Yes |
| With control lamp (EF005055) | No |
| Width in number of modular spacings (EF002950) | 3 |
| Built-in depth (EF000218) | 60 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of active contacts (round) (EF011998) | 2 |
| Number of active contacts (flat) (EF011999) | 2 |
