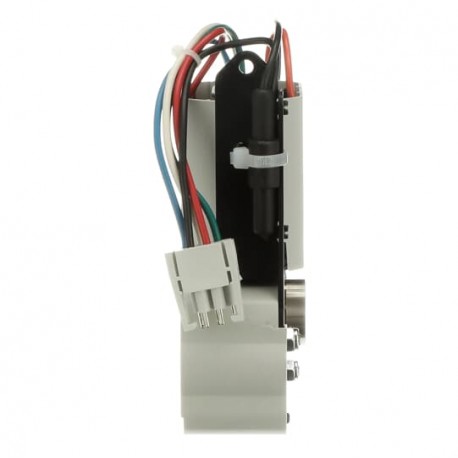

1SDA073722R1 ABB M E2.2...E6.2 24-30 VAC/DC
1SDA073722R1
073722
ABB
1 Pcs.
Automation > Motor operator for power circuit-breaker
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A motorized operating mechanism like the ABB M E2.2...E6.2 24-30 VAC/DC provides automated control for heavy-duty air circuit breakers. These components are integrated into switchgear assemblies to enable remote resetting, opening, and closing without requiring physical access to the primary electrical enclosure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZEBM2
- EAN: 8015644776558
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.927 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 204 mm
- Package Level 1 Height: 233 mm
- Package Level 1 Depth / Length: 154 mm
- Package Level 1 Gross Weight: 2.028 kg
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZEBM2 |
| EAN | 8015644776558 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.927 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 204 mm |
| Package Level 1 Height | 233 mm |
| Package Level 1 Depth / Length | 154 mm |
| Package Level 1 Gross Weight | 2.028 kg |
| Package Level 1 EAN | 8015644776558 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Emax 3 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E2.2 |
| E4.2 | |
| E6.2 | |
| E2.3 | |
| E4.3 | |
| E6.3 | |
| Suitable for Product Class | SACE Emax 2 |
| SACE Emax 3 | |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Rated Voltage (Ur) | 24...30 V |
| Standards | IEC/UL |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH001000R0609 |
| External Classifications and Standards | |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 10 | EC001030 - Motor operator for power circuit-breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
