View larger
Images are for illustrative purposes only. Please refer to data sheet for details

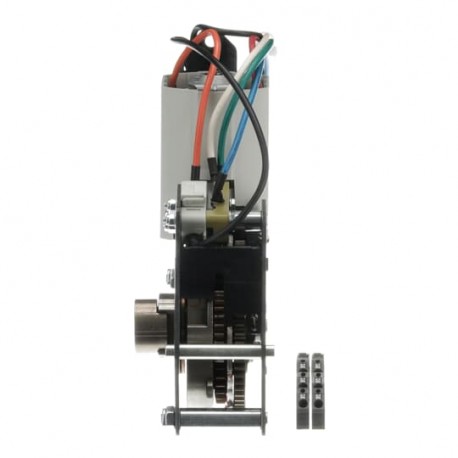

1SDA073724R1 ABB M E2.2...E6.2 100-130 VAC/DC
1SDA073724R1
073724
ABB
1 Pcs.
M E2.2...E6.2 100-130 VAC/DC
MOTOR CONTROL 100-130V-E2.2/E6.2
Automation > Motor operator for power circuit-breaker
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZEBM4 |
| EAN | 8015644776572 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.663 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Height | 175 mm |
| Package Level 1 Depth / Length | 195 mm |
| Package Level 1 Gross Weight | 1.663 kg |
| Package Level 1 EAN | 8015644776572 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Emax 3 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E2.2 |
| E4.2 | |
| E6.2 | |
| E2.3 | |
| E4.3 | |
| E6.3 | |
| Suitable for Product Class | SACE Emax 2 |
| SACE Emax 3 | |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Rated Voltage (Ur) | 100...130 V |
| Standards | IEC/UL |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH001000R0609 |
| External Classifications and Standards | |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 10 | EC001030 - Motor operator for power circuit-breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
| Feature Name | Feature Value |
|---|---|
| Type of switch drive (EF008233) | Motor drive |
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 100 V |
| Rated control supply voltage DC (EF003980) | 100 V |
| Voltage type for actuating (EF008242) | AC/DC |
