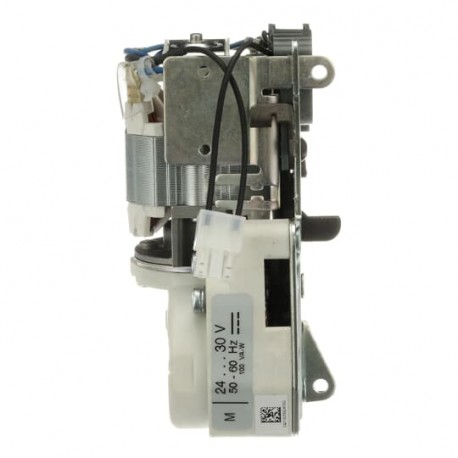

1SDA073718R1 ABB M E1.2 220-250 VAC/DC + MC 24V
1SDA073718R1
073718
ABB
1 Pcs.
Automation > Motor operator for power circuit-breaker
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SDA073718R1 is a motorized operating device configured to drive air circuit breakers for automated electrical network management. These motor units facilitate remote open and close cycles, enhancing operator safety and system responsiveness. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZE1MD
- EAN: 8015644776510
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.81 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 130 mm
- Package Level 1 Height: 80 mm
- Package Level 1 Depth / Length: 200 mm
- Package Level 1 Gross Weight: 1 kg
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZE1MD |
| EAN | 8015644776510 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.81 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 80 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 1 kg |
| Package Level 1 EAN | 8015644776510 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Emax 3 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1.2 |
| E1.3 | |
| Suitable for Product Class | SACE Emax 2 |
| SACE Emax 3 | |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Rated Voltage (Ur) | 220...250 V |
| Standards | IEC/UL |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH000999R0609 |
| External Classifications and Standards | |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 10 | EC001030 - Motor operator for power circuit-breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
