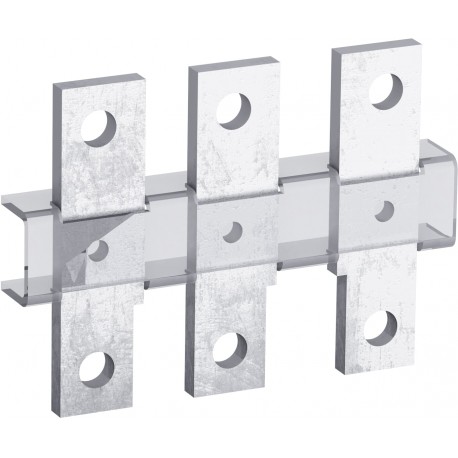

ABB 1SFN074810R1000 1SFN074810R1000 ABB Terminal Extension View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN074810R1000 ABB Terminal Extension

1SFN074810R1000

074810

ABB

1 Pcs.

Terminal Extension LX205 EXTENSION CONTACTOR TERMINAL LX205 Terminal Extension

Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB terminal extension (1SFN074810R1000) provides expanded connection surfaces for heavy-duty industrial contactors, facilitating the secure attachment of oversized power cables or busbars. These mechanical adapters ensure reliable current transmission and proper clearance within high-amperage electrical control panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC100005M0201
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 105 mm
  • Product Net Depth / Length: 15 mm
  • Product Net Height: 76 mm
  • Product Net Weight: 0.25 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF190
  • Suitable for Product Class: Block Contactors
  • Product Name: Terminal Extension
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC100005M0201
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width105 mm
Product Net Depth / Length15 mm
Product Net Height76 mm
Product Net Weight0.25 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF190
AF205
AF190B
AF205B
Suitable for Product ClassBlock Contactors
Product NameTerminal Extension
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cUL Certificate20120925-E36588
Declaration of Conformity - CE2CMT004895
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Depth / Length17 mm
Package Level 1 Height165 mm
Package Level 1 Gross Weight0.35 kg
Package Level 1 EAN7320500481257
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Norway)4117836
E-Number (Sweden)4117836
