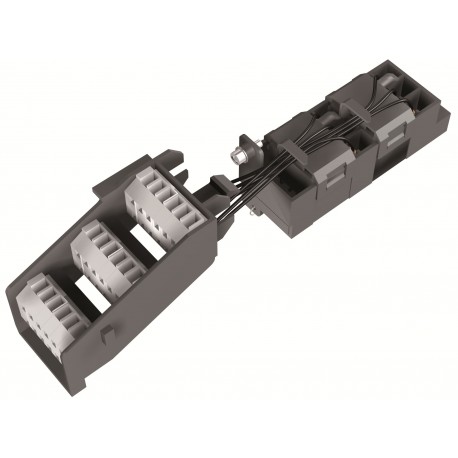

1SFN074210R1000 ABB LX140 Terminal Extension
1SFN074210R1000
074210
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SFN074210R1000 terminal extension broadens the busbar connection surface on high-capacity block contactors, enabling secure attachment of oversized power cables and lugs in demanding motor control environments. Extension hardware ensures proper mechanical spacing and electrical clearance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: N/A
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 84 mm
- Product Net Depth / Length: 14.5 mm
- Product Net Height: 70 mm
- Product Net Weight: 0.07 kg
- Terminal Type: Screw Terminals
- Suitable For: AF116
- Suitable for Product Class: Block Contactors
- Product Name: Terminal Extension
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | N/A |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 84 mm |
| Product Net Depth / Length | 14.5 mm |
| Product Net Height | 70 mm |
| Product Net Weight | 0.07 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF116 |
| AF140 | |
| AF146 | |
| AF116B | |
| AF140B | |
| AF146B | |
| Suitable for Product Class | Block Contactors |
| Product Name | Terminal Extension |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT004895 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 84 mm |
| Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 14.5 mm |
| Package Level 1 Gross Weight | 0.09 kg |
| Package Level 1 EAN | 7320500481288 |
| External Classifications and Standards | |
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706534 |
| E-Number (Norway) | 4117842 |
| E-Number (Sweden) | 3210197 |
