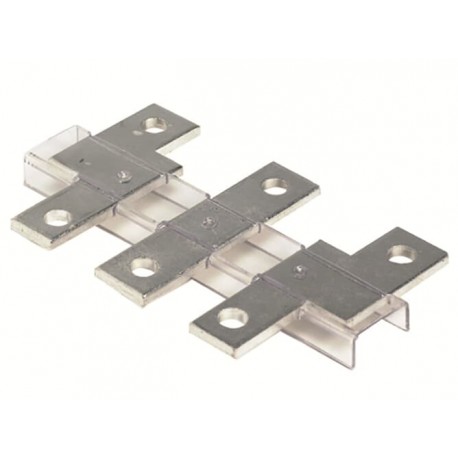

ABB 1SFN075707R1000 1SFN075707R1000 ABB Terminal Enlargement View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN075707R1000 ABB Terminal Enlargement

1SFN075707R1000

075707

ABB

1 Pcs.

Terminal Enlargement LW460 EXTENSION TERMINALS FOR AF400-AF460 LW460 Terminal Enlargement

Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A terminal enlargement accessory, the 1SFN075707R1000 ABB Terminal Enlargement, is designed to expand the connection area of heavy-duty block contactors, allowing technicians to attach larger cables and busbars securely in high-power distribution systems. These extensions facilitate proper thermal management and secure mechanical fastening in demanding industrial environments.

Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC380032-89
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 202 mm
  • Product Net Depth / Length: 48.5 mm
  • Product Net Height: 125 mm
  • Product Net Weight: 0.55 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF400
  • Suitable for Product Class: Block Contactors
  • Product Name: Terminal Enlargement
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC380032-89
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width202 mm
Product Net Depth / Length48.5 mm
Product Net Height125 mm
Product Net Weight0.55 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF400
AF460
Suitable for Product ClassBlock Contactors
Product NameTerminal Enlargement
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cUL Certificate20120925-E36588
Declaration of Conformity - CE2CMT005309
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width50 mm
Package Level 1 Depth / Length130 mm
Package Level 1 Height300 mm
Package Level 1 Gross Weight0.73 kg
Package Level 1 EAN7320500227213
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Finland)3709289
E-Number (Norway)4120561
E-Number (Sweden)3228915
