View larger
Images are for illustrative purposes only. Please refer to data sheet for details

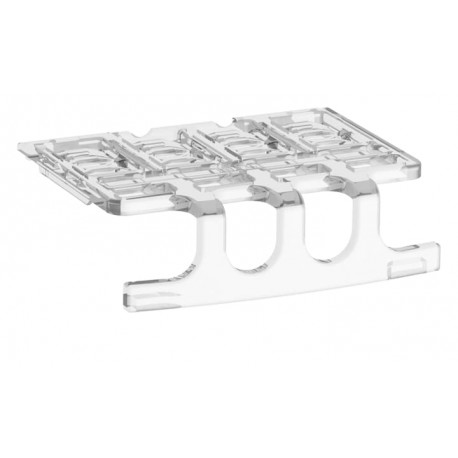

1SBN123902R1000 ABB LT80-40 Terminal Shroud
1SBN123902R1000
123902
ABB
1 Pcs.
LT80-40 Terminal Shroud
LT80-40 AF CONTACTOR COVERAWAY
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 40A to 100A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 39211200 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101050M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 89.5 mm |
| Product Net Depth / Length | 76.2 mm |
| Product Net Height | 27 mm |
| Product Net Weight | 0.025 kg |
| Technical | |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Suitable For | AF80 |
| Product Name | Terminal Shroud |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250060U1000 |
| Declaration of Conformity - UKCA | 1SBD250061U1000 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 180 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Gross Weight | 0.026 kg |
| Package Level 1 EAN | 3471523131217 |
| Package Level 2 Units | 25 piece |
| Package Level 2 Gross Weight | 0.65 kg |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Cover |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
