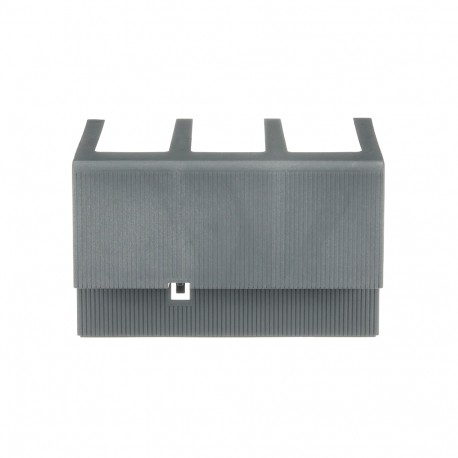

1SFN125406R1000 ABB Terminal Shroud
1SFN125406R1000
125406
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as an ABB terminal shroud, this insulating cover fits over electrical connection points to prevent accidental contact with live parts. Terminal shrouds increase safety compliance within high-voltage contactor and distribution assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SFC100015M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 138.9 mm
- Product Net Depth / Length: 86.2 mm
- Product Net Height: 126 mm
- Product Net Weight: 0.15 kg
- Terminal Type: Screw Terminals
- Suitable For: AF265
- Suitable for Product Class: Block Contactors
- Product Name: Terminal Shroud
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC100015M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 138.9 mm |
| Product Net Depth / Length | 86.2 mm |
| Product Net Height | 126 mm |
| Product Net Weight | 0.15 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF265 |
| AF305 | |
| AF370 | |
| AF265B | |
| AF305B | |
| AF370B | |
| Suitable for Product Class | Block Contactors |
| Product Name | Terminal Shroud |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT004895 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 138.9 mm |
| Package Level 1 Depth / Length | 126 mm |
| Package Level 1 Height | 86.2 mm |
| Package Level 1 Gross Weight | 0.19 kg |
| Package Level 1 EAN | 7320500481530 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706575 |
| E-Number (Norway) | 4117891 |
| E-Number (Sweden) | 3210187 |
