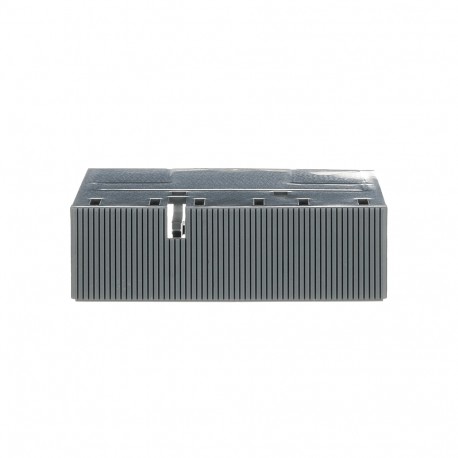

1SFN124804R1000 ABB LT205-30Y Terminal Shroud
1SFN124804R1000
124804
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is an Abb 1SFN124804R1000 ABB LT205-30Y Terminal Shroud engineered to enhance safety around electrical connections.
Terminal shrouds provide insulation coverage over contactor connection points to prevent accidental contact with live parts in industrial control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SFC100015M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 104.5 mm
- Product Net Depth / Length: 31 mm
- Product Net Height: 100.5 mm
- Product Net Weight: 0.05 kg
- Terminal Type: Screw Terminals
- Suitable For: AF190
- Suitable for Product Class: Block Contactors
- Product Name: Terminal Shroud
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC100015M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 104.5 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Height | 100.5 mm |
| Product Net Weight | 0.05 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF190 |
| AF205 | |
| AF190B | |
| AF205B | |
| Suitable for Product Class | Block Contactors |
| Product Name | Terminal Shroud |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT004895 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 104.5 mm |
| Package Level 1 Depth / Length | 100.5 mm |
| Package Level 1 Height | 31 mm |
| Package Level 1 Gross Weight | 0.07 kg |
| Package Level 1 EAN | 7320500481509 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706571 |
| E-Number (Norway) | 4117883 |
| E-Number (Sweden) | 3210190 |
