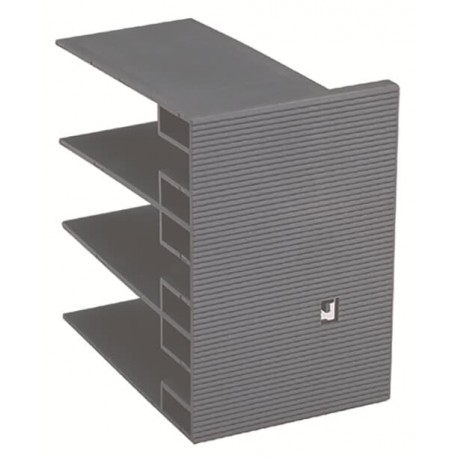

ABB 1SFN124803R1000 1SFN124803R1000 ABB Terminal Shroud View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN124803R1000 ABB Terminal Shroud

1SFN124803R1000

124803

ABB

1 Pcs.

Terminal Shroud LT205-30L TERMINAL COVERS LT205-30L Terminal Shroud

Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SFN124803R1000 ABB Terminal Shroud is a protective insulation cover designed to enclose electrical connection points on high-capacity contactors. Shrouds prevent accidental finger contact with live metal terminals, helping panels comply with rigorous electrical safety standards. These barriers also protect connection points from dust, debris, and foreign objects in demanding plant environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC100015M0201
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 104.6 mm
  • Product Net Depth / Length: 69.7 mm
  • Product Net Height: 100.7 mm
  • Product Net Weight: 0.22 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF190
  • Suitable for Product Class: Block Contactors
  • Product Name: Terminal Shroud
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC100015M0201
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width104.6 mm
Product Net Depth / Length69.7 mm
Product Net Height100.7 mm
Product Net Weight0.22 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF190
AF205
AF190B
AF205B
Suitable for Product ClassBlock Contactors
Product NameTerminal Shroud
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
Declaration of Conformity - CE2CMT004895
Declaration of Conformity - UKCA2CMT2020-006120
UL Certificate20121023-E36588
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width104.6 mm
Package Level 1 Depth / Length100.7 mm
Package Level 1 Height69.7 mm
Package Level 1 Gross Weight0.24 kg
Package Level 1 EAN7320500481486
External Classifications and Standards
Object Classification CodeF
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC000066 - Power contactor, AC switching
eClassV11.0 : 27371003
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Finland)3706570
E-Number (Norway)4117849
E-Number (Sweden)3210188

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
