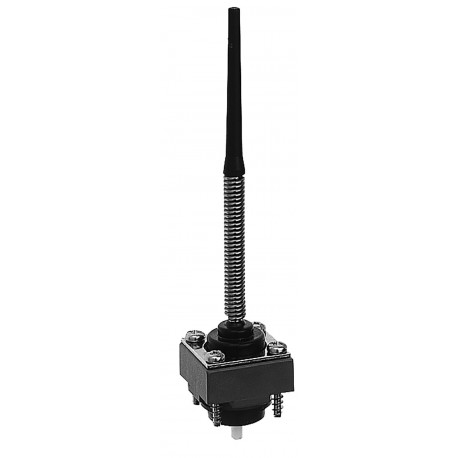

LSTH92 1SBV049192R1000 ABB LSTH92 Limit Switch operating head
LSTH92
1SBV049192R1000
ABB
1 Pcs.
Automation > Accessories/spare parts for position switches
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB limit switch operating head is a mechanical component mounted onto compatible sensor bodies to translate physical actuation vectors into reliable internal contact switching. These modular heads accommodate various industrial automation motion profiles to ensure accurate position detection across diverse machinery setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC141127C0201
- Instructions and Manuals: 1SBC141127C0201
- Product Net Width: 31 mm
- Product Net Height: 128 mm
- Product Net Depth / Length: 31 mm
- Product Net Weight: 0.049 kg
- Ambient Air Temperature: Operation -25 ... +70 °C
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SBD251109E1001
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- WEEE B2C / B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- CQC Certificate: CQC2004010305127663
- cUL Certificate: 9AKK107991A7379
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141127C0201 |
| Instructions and Manuals | 1SBC141127C0201 |
| Dimensions | |
| Product Net Width | 31 mm |
| Product Net Height | 128 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Weight | 0.049 kg |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251109E1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 32 mm |
| Package Level 1 Depth / Length | 172 mm |
| Package Level 1 Height | 43 mm |
| Package Level 1 Gross Weight | 0.049 kg |
| Package Level 1 EAN | 3471522619167 |
| External Classifications and Standards | |
| ETIM 6 | EC002594 - Accessories for position switches |
| ETIM 7 | EC002594 - Accessories for position switches |
| ETIM 8 | EC002594 - Accessories/spare parts for position switches |
| eClass | V11.0 : 27270692 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
