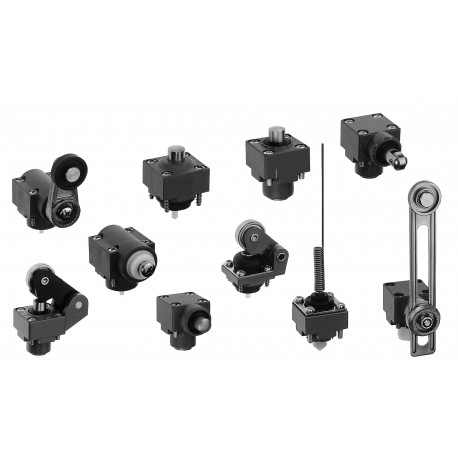

LSTH91 1SBV049191R1000 ABB LSTH91 Limit Switch operating head
LSTH91
1SBV049191R1000
ABB
1 Pcs.
Automation > Accessories/spare parts for position switches
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB LSTH91 is a limit switch operating head that acts as the mechanical actuator interface for limit switches in industrial control systems. Operating heads convert physical movement from machine parts into electrical switching signals for position detection and safety interlocking.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC141127C0201
- Instructions and Manuals: 1SBC141127C0201
- Product Net Width: 31 mm
- Product Net Height: 128 mm
- Product Net Depth / Length: 31 mm
- Product Net Weight: 0.046 kg
- Ambient Air Temperature: Operation -25 ... +70 °C
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SBD251109E1001
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- WEEE B2C / B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- CQC Certificate: CQC2004010305127663
- cUL Certificate: 9AKK107991A7379
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141127C0201 |
| Instructions and Manuals | 1SBC141127C0201 |
| Dimensions | |
| Product Net Width | 31 mm |
| Product Net Height | 128 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Weight | 0.046 kg |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251109E1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 32 mm |
| Package Level 1 Depth / Length | 172 mm |
| Package Level 1 Height | 43 mm |
| Package Level 1 Gross Weight | 0.046 kg |
| Package Level 1 EAN | 3471522619150 |
| External Classifications and Standards | |
| ETIM 6 | EC002594 - Accessories for position switches |
| ETIM 7 | EC002594 - Accessories for position switches |
| ETIM 8 | EC002594 - Accessories/spare parts for position switches |
| eClass | V11.0 : 27270692 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
