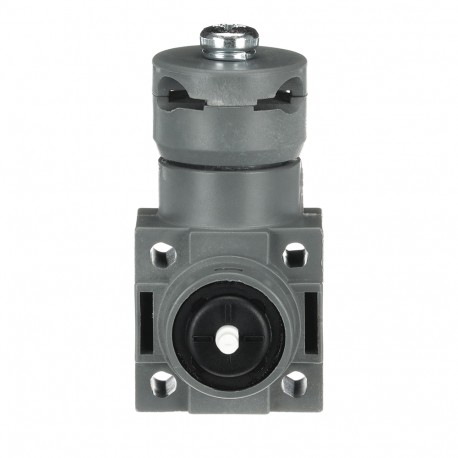

ABB LSTH50 LSTH50 1SBV049150R1000 ABB LSTH50 Limit Switch operating head View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LSTH50 1SBV049150R1000 ABB LSTH50 Limit Switch operating head

LSTH50

1SBV049150R1000

ABB

1 Pcs.

LSTH50 Limit Switch operating head LSTH50 Limit Switch Accessory

Automation > Accessories/spare parts for position switches
Limit FRCTLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb LSTH50 is a limit switch operating head engineered to convert physical motion into electrical switching signals in industrial machinery. These modular heads mount directly onto compatible limit switch bodies to detect the presence, position, or travel limits of moving parts, conveyors, and automated handling equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC141127C0201
  • Instructions and Manuals: 1SBC141127C0201
  • Product Net Width: 30 mm
  • Product Net Height: 60 mm
  • Product Net Depth / Length: 42 mm
  • Product Net Weight: 0.088 kg
  • Ambient Air Temperature: Operation -25 ... +70 °C
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SBD251109E1001
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 2CMT2023-006537
  • WEEE B2C / B2B: Business To Business
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • CQC Certificate: CQC2004010305127663

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC141127C0201
Instructions and Manuals1SBC141127C0201
Dimensions
Product Net Width30 mm
Product Net Height60 mm
Product Net Depth / Length42 mm
Product Net Weight0.088 kg
Environmental
Ambient Air TemperatureOperation -25 ... +70 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SBD251109E1001
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006537
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Certificates and Declarations
CQC CertificateCQC2004010305127663
cUL Certificate9AKK107991A7379
Declaration of Conformity - CCC2020980305001785
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Gross Weight0.088 kg
Package Level 1 EAN3471522619068
External Classifications and Standards
ETIM 6EC002594 - Accessories for position switches
ETIM 7EC002594 - Accessories for position switches
ETIM 8EC002594 - Accessories/spare parts for position switches
eClassV11.0 : 27270692
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
