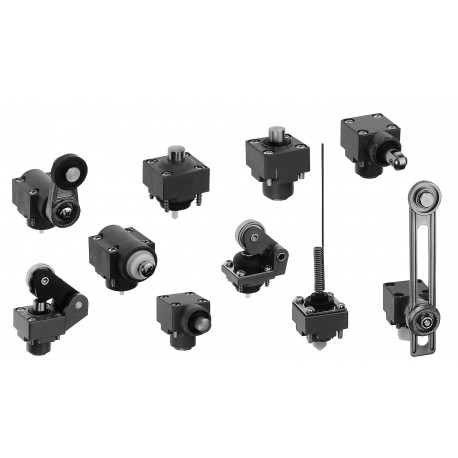

LSTH31 1SBV049131R1000 ABB LSTH31 Limit Switch operating head
LSTH31
1SBV049131R1000
ABB
1 Pcs.
Automation > Accessories/spare parts for position switches
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb LSTH31 is a limit switch operating head designed to mechanically actuate industrial position switches based on target movement. Operating heads direct physical contact forces from levers, rollers, or plungers into the internal switching elements, providing reliable position feedback and machine movement tracking in automated production lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC141127C0201
- Instructions and Manuals: 1SBC141127C0201
- Product Net Width: 43 mm
- Product Net Height: 54 mm
- Product Net Depth / Length: 31 mm
- Product Net Weight: 0.046 kg
- Ambient Air Temperature: Operation -25 ... +70 °C
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SBD251109E1001
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 2CMT2023-006537
- WEEE B2C / B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- CQC Certificate: CQC2004010305127663
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141127C0201 |
| Instructions and Manuals | 1SBC141127C0201 |
| Dimensions | |
| Product Net Width | 43 mm |
| Product Net Height | 54 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Weight | 0.046 kg |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251109E1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006537 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 40 mm |
| Package Level 1 Depth / Length | 65 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Gross Weight | 0.046 kg |
| Package Level 1 EAN | 3471522618955 |
| External Classifications and Standards | |
| ETIM 6 | EC002594 - Accessories for position switches |
| ETIM 7 | EC002594 - Accessories for position switches |
| ETIM 8 | EC002594 - Accessories/spare parts for position switches |
| eClass | V11.0 : 27270692 |
| UNSPSC | 39121500 |
| IDEA Granular Category Code (IGCC) | 5253 >> Limit Switch Heads |
