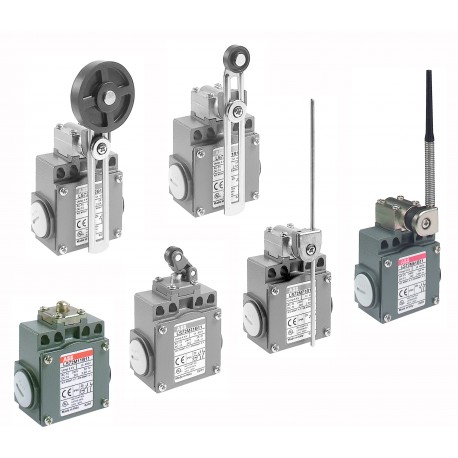

LS73M45B11 1SBV015245R1211 ABB LS73M45B11 Limit Switch
LS73M45B11
1SBV015245R1211
ABB
1 Pcs.
Automation > Position switch modular
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A limit switch functions as an electromechanical device designed to detect the presence, passage, or physical position of an object through direct contact with an actuator. Industrial installations rely on these robust components across conveyor systems, robotic cells, and manufacturing equipment to establish precise operational boundaries and safety interlocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC141157C0202
- Instructions and Manuals: 1SBC141157C0202
- Product Net Width: 59 mm
- Product Net Height: 116 mm
- Product Net Depth / Length: 54 mm
- Product Net Weight: 0.278 kg
- B10d Value: Operations 50 Millions
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 10 A
- Degree of Protection: acc. to IEC 60529 IP66
- Maximum Electrical Switching Frequency: (AC-15) 3600 cycles per hour
- Mechanical Durability: 10 million
- Pilot Duty UL/CSA: A600
- Rated Impulse Withstand Voltage (U imp ): 6 kV
- Rated Operational Current AC-15 (I e ): (230 V AC) 3.1 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141157C0202 |
| Instructions and Manuals | 1SBC141157C0202 |
| Dimensions | |
| Product Net Width | 59 mm |
| Product Net Height | 116 mm |
| Product Net Depth / Length | 54 mm |
| Product Net Weight | 0.278 kg |
| Technical | |
| B10d Value | Operations 50 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP66 |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| (DC-13) 3600 cycles per hour | |
| Mechanical Durability | 10 million |
| Pilot Duty UL/CSA | A600 |
| Q600 | |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A |
| (400 V) NC 4 | |
| (24 V) 10 A | |
| (130 V) 5.5 A | |
| (240 V) 3 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| acc. to UL/CSA 600 V | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| (110 V) 0.6 A | |
| (125 V) 0.55 A | |
| (250 V) 0.4 A | |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -30 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251109E1001 |
| RoHS Declaration | 1SBD251110E1000 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006537 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 70 mm |
| Package Level 1 Depth / Length | 45 mm |
| Package Level 1 Height | 140 mm |
| Package Level 1 Gross Weight | 0.299 kg |
| Package Level 1 EAN | 3471522627230 |
| External Classifications and Standards | |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 |
| UNSPSC | 39121500 |
