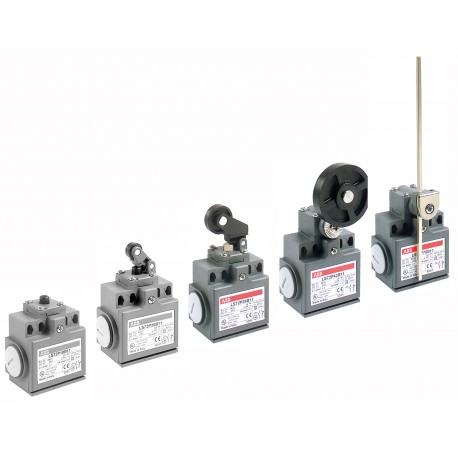

LS72P98B11-A 1SBV011098R1211 ABB LS72P98B11-A Limit Switch
LS72P98B11-A
1SBV011098R1211
ABB
1 Pcs.
Automation > Position switch modular
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb LS72P98B11-A limit switch is an electromechanical sensor utilized in automated machinery to detect the presence, position, or limit of travel of moving machine parts. Industrial systems rely on such components to safely halt operations or trigger sequential control signals when a physical barrier or component reaches a designated point. Final pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC141157C0202
- Instructions and Manuals: 1SBC141157C0202
- Product Net Width: 57 mm
- Product Net Height: 118 mm
- Product Net Depth / Length: 33 mm
- Product Net Weight: 0.132 kg
- B10d Value: Operations 50 Millions
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 10 A
- Degree of Protection: acc. to IEC 60529 IP65
- Maximum Electrical Switching Frequency: (AC-15) 3600 cycles per hour
- Mechanical Durability: 0 cycle
- Pilot Duty UL/CSA: A600
- Rated Impulse Withstand Voltage (U imp ): 6 kV
- Rated Operational Current AC-15 (I e ): (230 V AC) 3.1 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141157C0202 |
| Instructions and Manuals | 1SBC141157C0202 |
| Dimensions | |
| Product Net Width | 57 mm |
| Product Net Height | 118 mm |
| Product Net Depth / Length | 33 mm |
| Product Net Weight | 0.132 kg |
| Technical | |
| B10d Value | Operations 50 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| (DC-13) 3600 cycles per hour | |
| Mechanical Durability | 0 cycle |
| Pilot Duty UL/CSA | A600 |
| Q600 | |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A |
| (400 V) NC 4 | |
| (24 V) 10 A | |
| (130 V) 5.5 A | |
| (240 V) 3 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| acc. to UL/CSA 600 V | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| (110 V) 0.6 A | |
| (125 V) 0.55 A | |
| (250 V) 0.4 A | |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -30 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251097E1000 |
| RoHS Information | 1SBD251097E1000 |
| RoHS Status | Following EU Directive 2011/65/EU |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 45 mm |
| Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 140 mm |
| Package Level 1 Gross Weight | 0.153 kg |
| Package Level 1 EAN | 3471522630919 |
| Classifications | |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.1 : 27270601 |
| UNSPSC | 39121500 |
