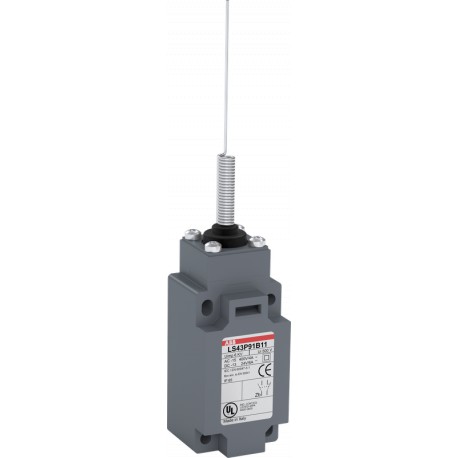

ABB 1SBV010791R1211 1SBV010791R1211 ABB LS43P91B11 Limit Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBV010791R1211 ABB LS43P91B11 Limit Switch

1SBV010791R1211

010791

ABB

1 Pcs.

LS43P91B11 Limit Switch fin.car.plas.40mm ISO20-LS43P91B11

Automation > End switch
Limit FRCTLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information1SBC141160C0201
Instructions and Manuals1SBC141160C0201
Dimensions
Product Net Width41 mm
Product Net Height195 mm
Product Net Depth / Length41 mm
Product Net Weight0.129 kg
Technical
Action Type of the Contact Element (acc. to IEC 60947-5-1)Snap Action Simultaneous
Actuator Typemultidirectional stainless steel spring with rigid end
B10d ValueOperations 50 Millions
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protectionacc. to IEC 60529 IP65
Housing MaterialPlastic
Maximum Electrical Switching Frequency(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts1 NO, 1 NC
Mechanical Durability>5 million
Mounting Type40 mm (EN 50041)
Number and Type of Bottom Cable Glands1 x M20x1.5 - Bottom
Pilot Duty UL/CSAA600
Q600
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Operational Current AC-15 (Ie)(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
Short-Circuit Protective DevicesgG Type Fuses 10 A
Environmental
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -30 ... +80 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SBD251109E1001
RoHS Declaration1SBD251110E1000
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006537
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CQC CertificateCQC2004010305127663
cUL Certificate9AKK107991A7379
Declaration of Conformity - CCC2020980305001785
Declaration of Conformity - CE1SBD250883U1000
Declaration of Conformity - UKCA1SBD250886U1000
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width45 mm
Package Level 1 Depth / Length70 mm
Package Level 1 Height200 mm
Package Level 1 Gross Weight0.156 kg
Package Level 1 EAN3471522003294
External Classifications and Standards
Object Classification CodeB
ETIM 6EC000030 - End switch
ETIM 7EC000030 - End switch
ETIM 8EC000030 - End switch
eClassV11.0 : 27272601
UNSPSC39121500

ETIM for 1SBV010791R1211 Sensors (EC000030)
Feature Name Feature Value
Width sensor (EF007094) 41 mm
Diameter sensor (EF007111) 0 mm
Height of sensor (EF007283) 195 mm
Length of sensor (EF007334) 41 mm
Rated operation current Ie at AC-15, 24 V (EF007084) 10 A
Rated operation current Ie at AC-15, 125 V (EF007082) 5.5 A
Rated operation current Ie at AC-15, 230 V (EF001385) 3.1 A
Rated operation current Ie at DC-13, 24 V (EF007087) 6 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.6 A
Rated operation current Ie at DC-13, 230 V (EF001386) 0.4 A
Switching function (EF000189) Quick-break switch
Switching function latching (EF007447) No
Output electronic (EF006987) No
Forced opening (EF006694) No
Number of safety auxiliary contacts (EF006940) 0
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 0
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) None
Construction type housing (EF004008) Cuboid
Housing material (EF001596) Plastic
Coating housing (EF001601) Other
Type of control element (EF006976) Plunger
Alignment of the control element (EF008793) Other
Type of electric connection (EF003961) Cable entry metrical
With status indication (EF001602) No
Suitable for safety functions (EF001597) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Ambient temperature during operating (EF007515) -25 °C
Degree of protection (IP) (EF005474) IP65
