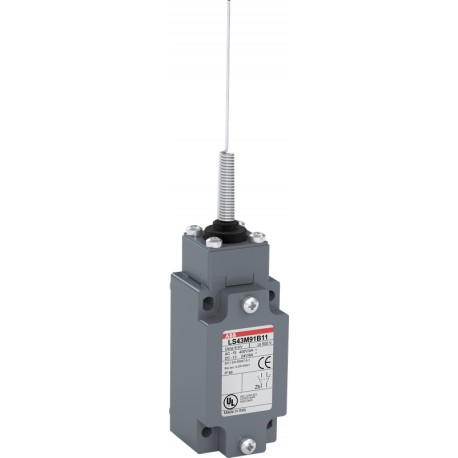

1SBV011691R1211 ABB LS43M91B11 Limit Switch
1SBV011691R1211
011691
ABB
1 Pcs.
Automation > End switch
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SBV011691R1211 limit switch is an electromechanical sensing device utilized to detect the presence or end-of-travel of moving machine parts in automated processes.
Plant operators deploy limit switches throughout manufacturing lines and heavy industrial equipment to establish precise motion limits, trigger control routines, and protect assets from overtravel.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC141160C0201
- Instructions and Manuals: 1SBC141160C0201
- Product Net Width: 40 mm
- Product Net Height: 199 mm
- Product Net Depth / Length: 44 mm
- Product Net Weight: 0.209 kg
- Action Type of the Contact Element (acc. to IEC 60947-5-1): Snap Action Simultaneous
- Actuator Type: multidirectional stainless steel spring with rigid end
- B10d Value: Operations 50 Millions
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 10 A
- Degree of Protection: acc. to IEC 60529 IP66
- Housing Material: Metal
- Maximum Electrical Switching Frequency: (AC-15) 3600 cycles per hour
- Maximum Mounted Auxiliary Contacts: 1 NO, 1 NC
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141160C0201 |
| Instructions and Manuals | 1SBC141160C0201 |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 44 mm |
| Product Net Weight | 0.209 kg |
| Technical | |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous |
| Actuator Type | multidirectional stainless steel spring with rigid end |
| B10d Value | Operations 50 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP66 |
| Housing Material | Metal |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| (DC-13) 3600 cycles per hour | |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 10 million |
| Mounting Type | 40 mm (EN 50041) |
| Number and Type of Bottom Cable Glands | 1 x M20x1.5 - Bottom |
| Pilot Duty UL/CSA | A600 |
| Q600 | |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A |
| (400 V) NC 4 | |
| (24 V) 10 A | |
| (130 V) 5.5 A | |
| (240 V) 3 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| acc. to UL/CSA 600 V | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| (110 V) 0.6 A | |
| (125 V) 0.55 A | |
| (250 V) 0.4 A | |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -30 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251109E1001 |
| RoHS Declaration | 1SBD251110E1000 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006537 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 45 mm |
| Package Level 1 Depth / Length | 45 mm |
| Package Level 1 Height | 200 mm |
| Package Level 1 Gross Weight | 0.232 kg |
| Package Level 1 EAN | 3471522002938 |
| External Classifications and Standards | |
| Object Classification Code | B |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 |
| UNSPSC | 39121500 |
