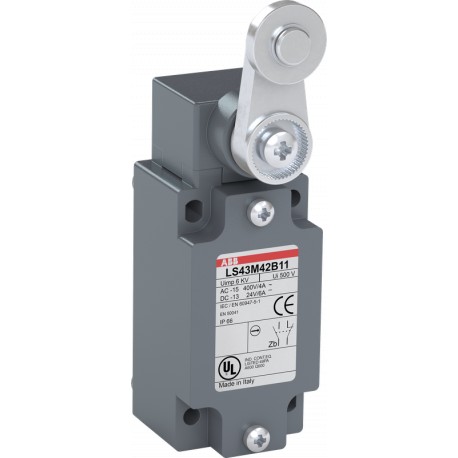

LS40M42B11 Limit Switch
Automation > Position switch modular
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb LS40M42B11 limit switch is used across manufacturing and processing plants to detect the mechanical limits of moving parts, ensuring that actuators and conveyor systems stop or reverse at precise locations. Integration of these devices protects capital equipment from mechanical overtravel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC141157C0202
- Instructions and Manuals: 1SBC141157C0202
- Product Net Width: 40 mm
- Product Net Height: 133 mm
- Product Net Depth / Length: 60 mm
- Product Net Weight: 0.279 kg
- Action Type of the Contact Element (acc. to IEC 60947-5-1): Snap action contacts
- Actuation Speed: acc. to IEC 60947-5-1 Max. 1.5 m/s
- Actuation Torque: acc. to IEC 60947-5-1 Min. 0.15 N·m
- Actuator Type: Ø22 mm stainless steel roller lever
- Angular Head Adjustment: adjustable head every 90°
- Angular Lever Adjustment: 9° in 9°
- B10d Value: Operations 50 Millions
- Climatic Withstand: according to IEC 68-2-3 and salty mist according to IEC 68-2-11
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141157C0202 |
| Instructions and Manuals | 1SBC141157C0202 |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 133 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.279 kg |
| Technical | |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap action contacts |
| Actuation Speed | acc. to IEC 60947-5-1 Max. 1.5 m/s |
| acc. to IEC 60947-5-1 Min. 0 m/s | |
| Actuation Torque | acc. to IEC 60947-5-1 Min. 0.15 N·m |
| Actuator Type | Ø22 mm stainless steel roller lever |
| Angular Head Adjustment | adjustable head every 90° |
| Angular Lever Adjustment | 9° in 9° |
| B10d Value | Operations 50 Millions |
| Climatic Withstand | according to IEC 68-2-3 and salty mist according to IEC 68-2-11 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Connecting Capacity | Bar AWG 20 ... AWG 14 mm² |
| Bar 0.5 ... 2.5 mm² | |
| Consistency (Measured over 1 Million Operations) | 0.05 mm |
| Contact Element Form (acc. to IEC 60947-5-1) | Zb |
| Connecting Terminals (delivered in open position) | M3.5 (+,-) pozidriv 2 screw with cable clamp |
| Degree of Protection | acc. to IEC 60529 IP66 |
| Electrical Shock Protection acc. to IEC 536 | Class I |
| Maximum Electrical Switching Frequency | 3600 cycles per hour |
| (AC-15) 3600 cycles per hour | |
| (DC-13) 3600 cycles per hour | |
| Mechanical Durability | 0 cycle |
| Mounting by Screws (not supplied) | 2 or 4 x M5 screws |
| Movement to be Detected | 30° Cam Translation Movement |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number and Type of Bottom Cable Glands | Pg 13,5 Cable Gland |
| Operating Head Shape | A shape acc. EN 50041 |
| Pilot Duty UL/CSA | A600 |
| Q600 | |
| Positive Opening Operation Torque (Direct Opening Action) | Minimum Torque acc. to IEC 60947-5-1 0.32 N·m |
| Positive Opening Operation of NC Contact(s) | Yes |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A |
| (400 V) NC 4 | |
| (24 V) 10 A | |
| (130 V) 5.5 A | |
| (240 V) 3 A | |
| Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| acc. to UL/CSA 600 V | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| (110 V) 0.6 A | |
| (125 V) 0.55 A | |
| (250 V) 0.4 A | |
| Resistance Between Contacts | 25 E45 |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Terminal Marking | according to EN 50013 |
| Terminal for Protective Conductor | M 3.5 (+,-) pozidriv 2 screw with cable clamp |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -30 ... +80 °C | |
| Resistance to Shock acc. to IEC 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s² |
| Resistance to Vibrations | No Change in Position of Contacts Greater than 100 µs: 25g 10 ... 500 Hz |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251097E1000 |
| RoHS Information | 1SBD251097E1000 |
| RoHS Status | Following EU Directive 2011/65/EU |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 45 mm |
| Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 140 mm |
| Package Level 1 Gross Weight | 0.3 kg |
| Package Level 1 EAN | 3471522003737 |
| Classifications | |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.1 : 27270601 |
| UNSPSC | 39122213 |
| IDEA Granular Category Code (IGCC) | 5202 >> Limit switch |
