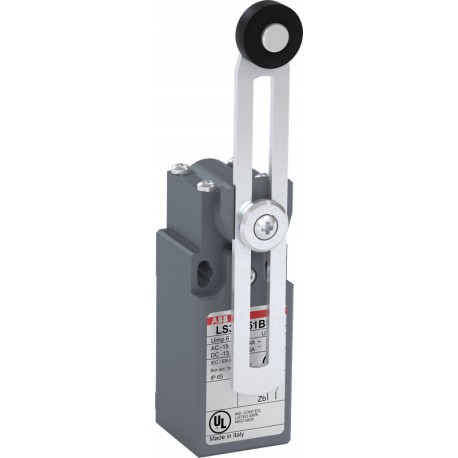

ABB 1SBV012151R1211 1SBV012151R1211 ABB LS35P51B11 Limit Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBV012151R1211 ABB LS35P51B11 Limit Switch

1SBV012151R1211

012151

ABB

1 Pcs.

LS35P51B11 Limit Switch Int.End.Career LS35P51B11

Automation > End switch
Limit FRCTLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information1SBC141160C0201
Instructions and Manuals1SBC141160C0201
Dimensions
Product Net Width30 mm
Product Net Height98.5 mm
Product Net Depth / Length45.5 mm
Product Net Weight0.092 kg
Technical
Action Type of the Contact Element (acc. to IEC 60947-5-1)Snap Action Contacts
Actuation Speedacc. to IEC 60947-5-1 Max. 1.5 m/s
Actuation Torqueacc. to IEC 60947-5-1 Min. 0.1 N·m
Actuator Typeadjustable Ø 18 mm polyamide roller lever
Angular Head Adjustmentadjustable head every 90°
Angular Lever Adjustment10° in 10°
B10d ValueOperations 30 Millions
Climatic Withstandaccording to IEC 68-2-3 and Salty Mist according to IEC 68-2-11
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Connecting CapacityBar AWG 20 ... AWG 14 mm²
Bar 0.5 ... 2.5 mm²
Consistency (Measured over 1 Million Operations)0.1 mm
Contact Element Form (acc. to IEC 60947-5-1)Zb
Connecting Terminals (delivered in open position)M3.5 (+,-) pozidriv 2 screw with cable clamp
Degree of Protectionacc. to IEC 60529 IP65
Electrical Shock Protection acc. to IEC 536Double insulation - Class II
Flammability According to UL94V-0
Housing MaterialPlastic
Maximum Electrical Switching Frequency3600 cycles per hour
(AC-15) 3600 cycles per hour
(DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts1 NO, 1 NC
Mechanical Durability10 million
Mounting Type30 mm (EN 50047)
Mounting by Screws (not supplied) 2 x M4 Screws
Movement to be Detected30° Cam Translation Movement
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Number and Type of Bottom Cable Glands1/2 NPT plastic adaptor
Pilot Duty UL/CSAA600
Q600
Positive Opening Operation of NC Contact(s)No
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Operational Current AC-15 (Ie)(230 V AC) 3.1 A
(400 V) NC 4
(24 V) 10 A
(130 V) 5.5 A
(240 V) 3 A
Rated Frequency (f)Supply Circuit 50 / 60 Hz
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)(24 V) 6 A
(110 V) 0.6 A
(125 V) 0.55 A
(250 V) 0.4 A
Resistance Between Contacts25 ms
Short-Circuit Protective DevicesgG Type Fuses 10 A
Terminal Markingaccording to EN 50013
Environmental
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -30 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s²
Resistance to VibrationsNo Change in Position of Contacts Greater than 100 µs: 25g 10 ... 500 Hz
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SBD251109E1001
RoHS Declaration1SBD251110E1000
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006537
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CQC CertificateCQC2004010305127663
cUL Certificate9AKK107991A7379
Declaration of Conformity - CCC2020980305001785
Declaration of Conformity - CE1SBD250883U1000
Declaration of Conformity - UKCA1SBD250886U1000
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width54 mm
Package Level 1 Depth / Length32 mm
Package Level 1 Height118 mm
Package Level 1 Gross Weight0.106 kg
Package Level 1 EAN3471522610973
External Classifications and Standards
Object Classification CodeB
ETIM 6EC000030 - End switch
ETIM 7EC000030 - End switch
ETIM 8EC000030 - End switch
eClassV11.0 : 27272601
UNSPSC39122213
IDEA Granular Category Code (IGCC)5202 >> Limit switch

ETIM for 1SBV012151R1211 Sensors (EC000030)
Feature Name Feature Value
Width sensor (EF007094) 30 mm
Diameter sensor (EF007111) 0 mm
Height of sensor (EF007283) 98.5 mm
Length of sensor (EF007334) 45.5 mm
Rated operation current Ie at AC-15, 24 V (EF007084) 10 A
Rated operation current Ie at AC-15, 125 V (EF007082) 5.5 A
Rated operation current Ie at AC-15, 230 V (EF001385) 3.1 A
Rated operation current Ie at DC-13, 24 V (EF007087) 6 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.6 A
Rated operation current Ie at DC-13, 230 V (EF001386) 0.4 A
Switching function (EF000189) Quick-break switch
Switching function latching (EF007447) No
Output electronic (EF006987) No
Forced opening (EF006694) No
Number of safety auxiliary contacts (EF006940) 0
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 0
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) None
Construction type housing (EF004008) Cuboid
Housing material (EF001596) Plastic
Coating housing (EF001601) Other
Type of control element (EF006976) Plunger
Alignment of the control element (EF008793) Other
Type of electric connection (EF003961) Connector 1/2 inch
With status indication (EF001602) No
Suitable for safety functions (EF001597) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Ambient temperature during operating (EF007515) -25 °C
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
