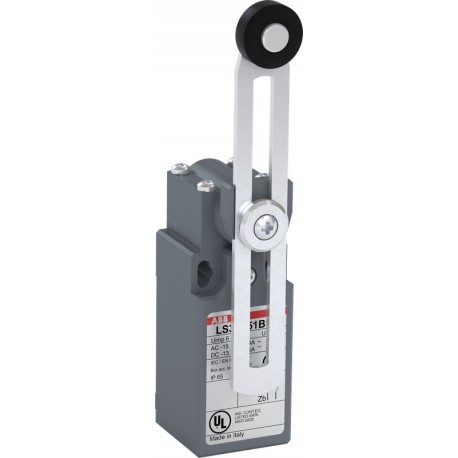

1SBV010351R1211 ABB LS32P51B11 Limit Switch
1SBV010351R1211
010351
ABB
1 Pcs.
Automation > End switch
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A limit switch functions as a reliable electromechanical sensor designed to detect the presence, passage, or end-of-travel position of industrial components and moving machine elements. The Abb 1SBV010351R1211 LS32P51B11 limit switch integrates into automated setups to manage operational limits and trigger feedback loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC141160C0201
- Instructions and Manuals: 1SBC141160C0201
- Product Net Width: 30 mm
- Product Net Height: 98.5 mm
- Product Net Depth / Length: 45.5 mm
- Product Net Weight: 0.092 kg
- Action Type of the Contact Element (acc. to IEC 60947-5-1): Snap Action Simultaneous
- Actuator Type: adjustable plastic roller lever (Ø18 mm)
- B10d Value: Operations 30 Millions
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 10 A
- Degree of Protection: acc. to IEC 60529 IP65
- Housing Material: Plastic
- Maximum Electrical Switching Frequency: (AC-15) 3600 cycles per hour
- Maximum Mounted Auxiliary Contacts: 1 NO, 1 NC
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141160C0201 |
| Instructions and Manuals | 1SBC141160C0201 |
| Dimensions | |
| Product Net Width | 30 mm |
| Product Net Height | 98.5 mm |
| Product Net Depth / Length | 45.5 mm |
| Product Net Weight | 0.092 kg |
| Technical | |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous |
| Actuator Type | adjustable plastic roller lever (Ø18 mm) |
| B10d Value | Operations 30 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Housing Material | Plastic |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| (DC-13) 3600 cycles per hour | |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 10 million |
| Mounting Type | 30 mm (EN 50047) |
| Number and Type of Bottom Cable Glands | 1 x M16x1.5 - Bottom |
| Pilot Duty UL/CSA | A600 |
| Q600 | |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A |
| (400 V) NC 4 | |
| (24 V) 10 A | |
| (130 V) 5.5 A | |
| (240 V) 3 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| acc. to UL/CSA 600 V | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| (110 V) 0.6 A | |
| (125 V) 0.55 A | |
| (250 V) 0.4 A | |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -30 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251109E1001 |
| RoHS Declaration | 1SBD251110E1000 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006537 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 54 mm |
| Package Level 1 Depth / Length | 32 mm |
| Package Level 1 Height | 118 mm |
| Package Level 1 Gross Weight | 0.106 kg |
| Package Level 1 EAN | 3471522000453 |
| External Classifications and Standards | |
| Object Classification Code | B |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 |
| UNSPSC | 39121500 |
