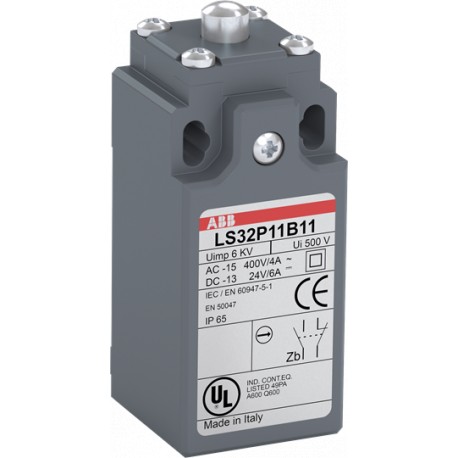

1SBV010311R1211 ABB LS32P11B11 Limit Switch
1SBV010311R1211
010311
ABB
1 Pcs.
Automation > End switch
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for demanding industrial environments, the 1SBV010311R1211 ABB limit switch provides robust mechanical position feedback for automated machinery and safety circuits. Industrial limit switches are standard components used to detect component presence, define working envelopes, and interlock hazardous moving parts.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC141160C0201
- Instructions and Manuals: 1SBC141160C0201
- Product Net Width: 30 mm
- Product Net Height: 73 mm
- Product Net Depth / Length: 30 mm
- Product Net Weight: 0.063 kg
- Action Type of the Contact Element (acc. to IEC 60947-5-1): Snap Action Simultaneous
- Actuator Type: plain steel plunger
- B10d Value: Operations 30 Millions
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 10 A
- Degree of Protection: acc. to IEC 60529 IP65
- Housing Material: Plastic
- Maximum Electrical Switching Frequency: (AC-15) 3600 cycles per hour
- Maximum Mounted Auxiliary Contacts: 1 NO, 1 NC
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141160C0201 |
| Instructions and Manuals | 1SBC141160C0201 |
| Dimensions | |
| Product Net Width | 30 mm |
| Product Net Height | 73 mm |
| Product Net Depth / Length | 30 mm |
| Product Net Weight | 0.063 kg |
| Technical | |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous |
| Actuator Type | plain steel plunger |
| B10d Value | Operations 30 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Housing Material | Plastic |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| (DC-13) 3600 cycles per hour | |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 15 million |
| Mounting Type | 30 mm (EN 50047) |
| Number and Type of Bottom Cable Glands | 1 x M16x1.5 - Bottom |
| Pilot Duty UL/CSA | A600 |
| Q600 | |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A |
| (400 V) NC 4 | |
| (24 V) 10 A | |
| (130 V) 5.5 A | |
| (240 V) 3 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| acc. to UL/CSA 600 V | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| (110 V) 0.6 A | |
| (125 V) 0.55 A | |
| (250 V) 0.4 A | |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -30 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251109E1001 |
| RoHS Declaration | 1SBD251110E1000 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006537 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 35 mm |
| Package Level 1 Depth / Length | 32 mm |
| Package Level 1 Height | 95 mm |
| Package Level 1 Gross Weight | 0.073 kg |
| Package Level 1 EAN | 3471522000378 |
| External Classifications and Standards | |
| Object Classification Code | B |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 |
| UNSPSC | 39121500 |
