View larger
Images are for illustrative purposes only. Please refer to data sheet for details

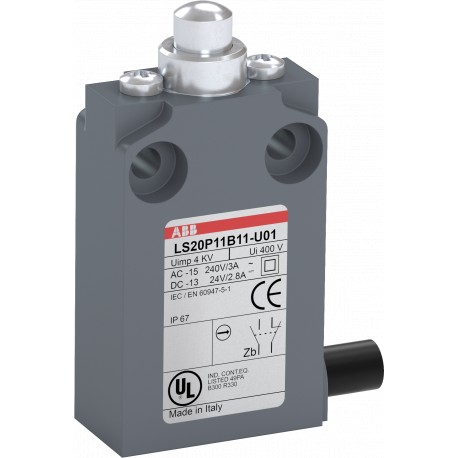

LS20P11B11-P01 1SBV015911R3201 ABB LS20P11B11-P01 Limit Switch
LS20P11B11-P01
1SBV015911R3201
ABB
10 Pcs.
LS20P11B11-P01 Limit Switch
Automation > Position switch modular
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
| Replacement Product ID (NEW) | 1SBV015911R3801 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141157C0202 |
| Instructions and Manuals | 1SBC141157C0202 |
| Dimensions | |
| Product Net Width | 30 mm |
| Product Net Height | 60 mm |
| Product Net Depth / Length | 16 mm |
| Product Net Weight | 0.124 kg |
| Technical | |
| B10d Value | Operations 20 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| (DC-13) 3600 cycles per hour | |
| Mechanical Durability | 30 million |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Operational Current AC-15 (Ie) | (24 V) 10 A |
| (130 V) 5.5 A | |
| (240 V) 3 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A |
| (125 V) 0.55 A | |
| (250 V) 0.27 A | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| RoHS Declaration | 1SBD251097E1000 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 16 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Gross Weight | 0.133 kg |
| Package Level 1 EAN | 3471522640376 |
| External Classifications and Standards | |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 |
| UNSPSC | 39121500 |
