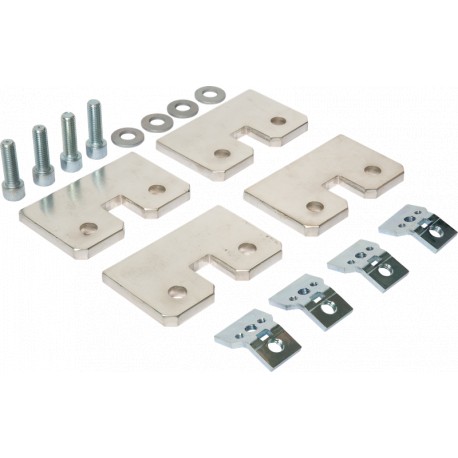

ABB 1SFN076512R1000 1SFN076512R1000 ABB LP2050 BRIDGE CONNECTION View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN076512R1000 ABB LP2050 BRIDGE CONNECTION

1SFN076512R1000

076512

ABB

1 Pcs.

LP2050 BRIDGE CONNECTION LP2050 Connecting Strip

Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 1SFN076512R1000 LP2050 BRIDGE CONNECTION functions as a heavy-duty conductive link within electrical power panels to securely bridge busbars or terminals of high-capacity switching devices. Such connecting strips distribute massive electrical loads efficiently across multi-pole configurations in heavy industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum order quantity: 1 piece
  • Tariff code: 85389099
  • Technical data, technical information: 1SBC100214C0202
  • Instructions and manuals: N/A
  • CAD dimensional drawing: 2CDC001079B0201
  • Product Width: 75 mm
  • Product length: 216 mm
  • Product height: 83 mm
  • Product Weight: 4.5 kg
  • Terminal Type: Screw terminals
  • Suitable for: GAF1650
  • Product Name: Connecting Strip
  • Conflict Minerals Notification Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Information: 2CMT2021-006277
  • RoHS Status: No declaration needed

More info

▲
classification
Minimum order quantity1 piece
Tariff code85389099
Popular Downloads
Technical data, technical information1SBC100214C0202
Instructions and manualsN/A
CAD dimensional drawing2CDC001079B0201
Dimensions
Product Width75 mm
Product length216 mm
Product height83 mm
Product Weight4.5 kg
Technique
Terminal TypeScrew terminals
Suitable forGAF1650
GAF2050
Product NameConnecting Strip
Material Compliance
Conflict Minerals Notification Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Information2CMT2021-006277
RoHS StatusNo declaration needed
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BFrom company to company
WEEE Category5. Small equipment (no external dimension more than 50cm)
Certificates and Declarations (Document Number)
cUL CertifiedUL_20130930-E73397
Declaration of Conformity - CE2CMT004858
Declaration of Conformity - UKCA2CMT2020-006120
Packaging Information
Packaging Level 1 Units4 piece bag
Packaging Level 1 Width75 mm
Level 1 Long Packaging83 mm
Packaging Level 1 High216 mm
Packaging Level 1 Weight4.6 kg
EAN Level 1 Packaging7320500409848
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
