View larger
Images are for illustrative purposes only. Please refer to data sheet for details

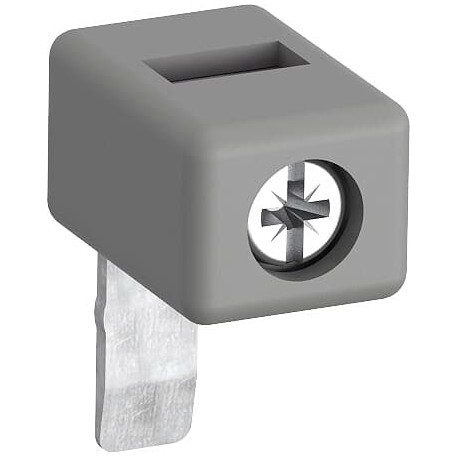

LK96-4F 1SBN073452R2000 ABB LK96-4F TERMINALS CONTROL CONNECTION.BEYON
LK96-4F
1SBN073452R2000
ABB
2 Pcs.
LK96-4F TERMINALS CONTROL CONNECTION.BEYON
LK96-4F CONTROL TERMINALS CONNEX. ADVANCE
LK96-4F Terminals for Control Lead Connections
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 10.1 mm |
| Product Net Depth / Length | 15 mm |
| Product Net Height | 21 mm |
| Product Net Weight | 0.005 kg |
| Technical | |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Rigid 1/2x 1 ... 2.5 mm² | |
| Wire Stripping Length | 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | AF40 |
| AF52 | |
| AF65 | |
| AF80 | |
| AF96 | |
| Technical UL/CSA | |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Information | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250055U1000 |
| Declaration of Conformity - UKCA | 1SBD250057U1000 |
| UL Certificate | UL-US-L312527-1141-10303102-9 |
| UL-CA-L312527-4141-10303102-9 | |
| Container Information | |
| Package Level 1 Units | bag 2 piece |
| Package Level 1 Width | 90 mm |
| Package Level 1 Depth / Length | 160 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.01 kg |
| Package Level 1 EAN | 3471523131019 |
| Package Level 3 Units | 12960 piece |
| Classifications | |
| ETIM 4 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.1 : 27371392 |
| UNSPSC | 39121432 |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
