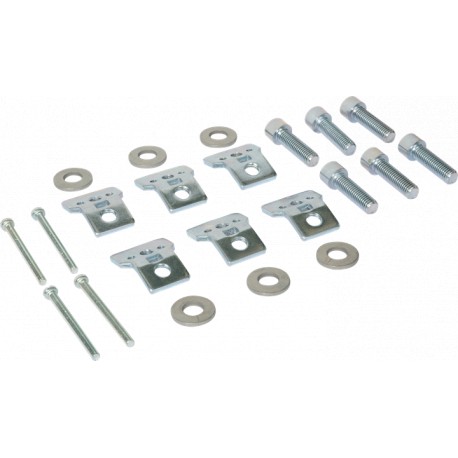

ABB 1SFN076116R1000 1SFN076116R1000 ABB LE750 Mounting Kit View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN076116R1000 ABB LE750 Mounting Kit

1SFN076116R1000

076116

ABB

1 Pcs.

LE750 Mounting Kit LE750 KIT TERM. ROSC. PSTB570.. PSTB1050

Automation > Accessories/spare parts for low-voltage switch technology
starters PST

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

High-power electrical contactors rely on specialized hardware sets like the Abb 1SFN076116R1000 LE750 Mounting Kit to ensure correct mechanical positioning and secure fastening within heavy industrial enclosures. Factory-engineered mounting accessories simplify installation procedures for large-format electrical switching devices.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: N/A
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 20 mm
  • Product Net Depth / Length: 2 mm
  • Product Net Height: 20 mm
  • Product Net Weight: 0.75 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF580
  • Suitable for Product Class: Block Contactors
  • Product Name: Mounting kit
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and ManualsN/A
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width20 mm
Product Net Depth / Length2 mm
Product Net Height20 mm
Product Net Weight0.75 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF580
AF750
Suitable for Product ClassBlock Contactors
Product NameMounting kit
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
WEEE B2C / B2BBusiness To Business
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cUL Certificate20120925-E36588
Declaration of Conformity - CE2CMT005309
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width91.6 mm
Package Level 1 Depth / Length46.1 mm
Package Level 1 Height41.5 mm
Package Level 1 Gross Weight0.9 kg
Package Level 1 EAN7320500250174
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC31162313
IDEA Granular Category Code (IGCC)2988 >> Mounting kits

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
