View larger
Images are for illustrative purposes only. Please refer to data sheet for details

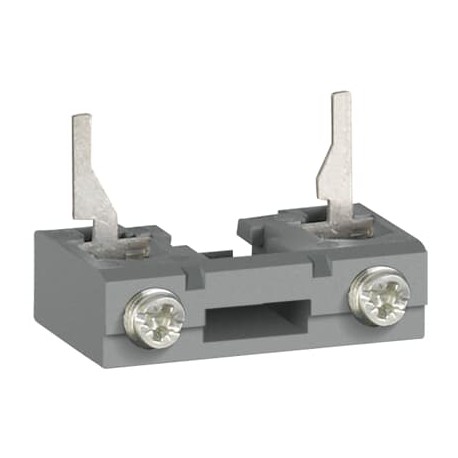

1SBN070158T1000 ABB LDC4RT TERMINAL BOBINA AUX. RT
1SBN070158T1000
070158
ABB
1 Pcs.
LDC4RT TERMINAL BOBINA AUX. RT
LDC4RT Coil Terminal
LDC4RT Coil Terminal Block
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369010 |
| Popular Downloads | |
| Instructions and Manuals | 1SBC101035M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 35 mm |
| Product Net Depth / Length | 22 mm |
| Product Net Height | 24 mm |
| Product Net Weight | 0.01 kg |
| Technical | |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10 |
| Terminal Type | Ring-Tongue Terminals |
| Suitable For | AF09B |
| AF09ZB | |
| AF12B | |
| AF12ZB | |
| AF16B | |
| AF16ZB | |
| AF26B | |
| AF26ZB | |
| AF30B | |
| AF30ZB | |
| AF38B | |
| AF38ZB | |
| NFZB22E | |
| NFB22E | |
| NFZB31E | |
| NFB31E | |
| NFZB40E | |
| NFB40E | |
| NFZB44E | |
| NFB44E | |
| NFZB62E | |
| NFB62E | |
| NFZB80E | |
| NFB80E | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Information | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250060U1000 |
| Declaration of Conformity - UKCA | 1SBD250061U1000 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 90 mm |
| Package Level 1 Depth / Length | 123 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 3471523130692 |
| Package Level 2 Units | 0 piece |
| Package Level 2 Width | 0 mm |
| Package Level 2 Depth / Length | 0 mm |
| Package Level 2 Height | 0 mm |
| Package Level 3 Units | 0 piece |
| Classifications | |
| ETIM 4 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.1 : 27371392 |
| UNSPSC | 39121410 |
| IDEA Granular Category Code (IGCC) | 4547 >> Terminal blocks |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Coil |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
