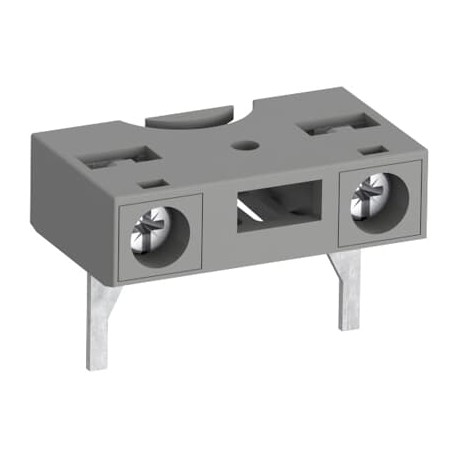

1SBN070156T1000 ABB LDC4 Additional Coil Terminal Block
1SBN070156T1000
070156
ABB
1 Pcs.
LDC4 Additional Coil Terminal Block
LDC4 ADDITIONAL TERMINAL FOR AF COIL
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101041M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 35 mm |
| Product Net Depth / Length | 22 mm |
| Product Net Height | 24 mm |
| Product Net Weight | 0.01 kg |
| Technical | |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Rigid Stranded 1/2x 1 ... 2.5 mm² | |
| Wire Stripping Length | Control Circuit 10 mm |
| Tightening Torque | Control Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AF40 | |
| AF52 | |
| AF65 | |
| AF80 | |
| AF96 | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| AFC40 | |
| AFC52 | |
| AFC65 | |
| AFC80 | |
| AFC96 | |
| AFS09 | |
| AFS09Z | |
| AFS12 | |
| AFS12Z | |
| AFS16 | |
| AFS16Z | |
| AFS26 | |
| AFS26Z | |
| AFS30 | |
| AFS30Z | |
| AFS38 | |
| AFS38Z | |
| AFS40 | |
| AFS52 | |
| AFS65 | |
| AFS80 | |
| AFS96 | |
| AF09B | |
| AF09ZB | |
| AF12B | |
| AF12ZB | |
| AF16B | |
| AF16ZB | |
| AF26B | |
| AF26ZB | |
| AF30B | |
| AF30ZB | |
| AF38B | |
| AF38ZB | |
| AF40B | |
| AF52B | |
| AF65B | |
| AF80B | |
| AF96B | |
| NF22E | |
| NFZ22E | |
| NF31E | |
| NFZ31E | |
| NF40E | |
| NFZ40E | |
| NF44E | |
| NFZ44E | |
| NF53E | |
| NFZ53E | |
| NF62E | |
| NFZ62E | |
| NF71E | |
| NFZ71E | |
| NF80E | |
| NFZ80E | |
| NF33/11 | |
| NF51/11 | |
| NFC22E | |
| NFC31E | |
| NFC40E | |
| NFC44E | |
| NFC53E | |
| NFC62E | |
| NFC71E | |
| NFC80E | |
| NFZB22E | |
| NFB22E | |
| NFZB31E | |
| NFB31E | |
| NFZB40E | |
| NFB40E | |
| NFZB44E | |
| NFB44E | |
| NFZB62E | |
| NFB62E | |
| NFZB80E | |
| NFB80E | |
| Product Name | Additional Coil Terminal Block |
| Technical UL/CSA | |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Rigid Stranded 1/2x 18-14 AWG | |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | ABS_20-2060694-PDA |
| Declaration of Conformity - CE | 1SBD250060U1000 |
| Declaration of Conformity - UKCA | 1SBD250061U1000 |
| GOST Certificate | GOST_POCCFR.ME77.B07175.pdf |
| RINA Certificate | RINA_ELE084013XG |
| UL Certificate | UL-US-2150887-5 |
| UL-CA-2142658-5 | |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Depth / Length | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 3471523130678 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121410 |
| IDEA Granular Category Code (IGCC) | 4547 >> Terminal blocks |
| E-Number (Finland) | 3706553 |
| E-Number (Sweden) | 3211409 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Coil |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
