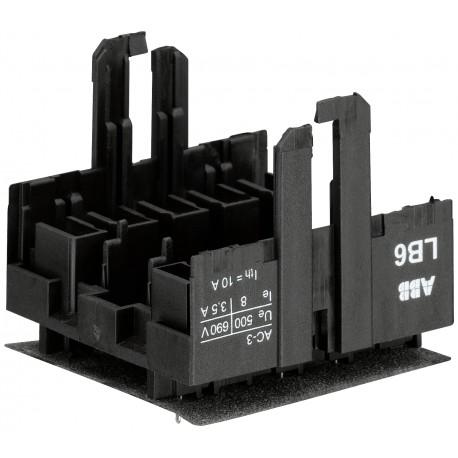

GJL1201902R0001 ABB LB6 Soldering Socket
GJL1201902R0001
1201902
ABB
1 Pcs.
LB6 Soldering Socket
LB6 BASE for soldering to printed circuit board
LB6 Soldering Receptacle 5-pole
Automation > Accessories/spare parts for low-voltage switch technology
Minicontactors B6-B7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85366990 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC102047M6802 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 47.5 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Height | 44 mm |
| Product Net Weight | 0.02 kg |
| Dimension Diagram | GJL1200421 |
| Technical | |
| Standards | UL 60947-1 |
| UL 60947-4-1 | |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit 10 A |
| Main Circuit 10 A | |
| Rated Operational Current AC-3 (Ie) | (500 V) 55 °C 8 A |
| (690 V) 55 °C 3.5 A | |
| Rated Insulation Voltage (Ui) | 690 V |
| Terminal Type | Soldering Pins |
| Suitable For | B6-F |
| BC6-F | |
| B6S-F | |
| B7-F | |
| BC7-F | |
| K6-F | |
| KC6-F | |
| Suitable for Product Class | Mini Contactors |
| Product Name | Soldering Socket |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 300 V AC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +50 °C |
| Storage -40 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | NoCerNee |
| BV Certificate | NoCerNee |
| cURus Certificate | cUL_E191658 |
| Declaration of Conformity - CE | 1SAD101100-3101 |
| Declaration of Conformity - UKCA | 1SAD201100-3101 |
| DNV Certificate | NoCerNee |
| GL Certificate | NoCerNee |
| LR Certificate | NoCerNee |
| RINA Certificate | NoCerNee |
| RMRS Certificate | NoCerNee |
| UL Certificate | E48139-19881213 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 115 mm |
| Package Level 1 Depth / Length | 280 mm |
| Package Level 1 Height | 54 mm |
| Package Level 1 Gross Weight | 0.27 kg |
| Package Level 1 EAN | 4013614412387 |
| External Classifications and Standards | |
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
