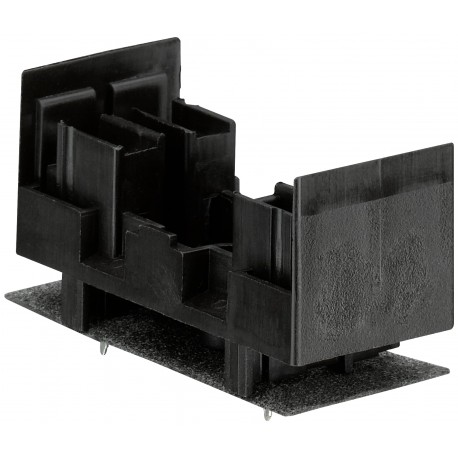

GJL1201903R0001 ABB LB6-CA Soldering Socket
GJL1201903R0001
1201903
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Minicontactors B6-B7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb GJL1201903R0001 LB6-CA Soldering Socket provides a secure printed circuit board mounting receptacle for compatible miniature contactors and auxiliary relays. Soldering sockets are widely used in electronic control assemblies to facilitate modular component replacement and stable circuit integration.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- EPLAN Data: 9AAC166197_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC102047M6802
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 44 mm
- Product Net Depth / Length: 22 mm
- Product Net Height: 20.3 mm
- Product Net Weight: 0.01 kg
- Dimension Diagram: GJL1200421
- Standards: UL 60947-1
- Conventional Free-air Thermal Current (I th ): Auxiliary Circuit 8 A
- Rated Insulation Voltage (U i ): 690 V
- Terminal Type: Soldering Pins
- Suitable For: CA6-11E-F
More info
