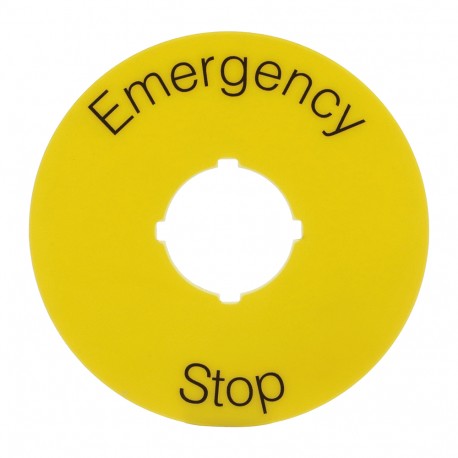

1SFA616915R1005 ABB KTC15-1005 Legend plate
1SFA616915R1005
616915
ABB
1 Pcs.
Automation > Legend plate for control circuit devices
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as an essential safety identification marker, the Abb 1SFA616915R1005 legend plate highlights emergency stop locations on automated machinery and control panels. These circular plates ensure immediate visual recognition in compliance with industrial safety guidelines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Product Main Type: KTC15
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Dimension Diagram: 1SFC151759F0001
- EPLAN Data: 9AAC205597_EPLAN
- Product Net Width: 0.07 m
- Product Net Depth / Length: 0.001 m
- Product Net Height: 0.07 m
- Product Net Weight: 0.003 kg
- Accessory Type: Legend plates
- Color: Yellow
- Function: Legend Plate Emergency Stop D=70mm
- Suitable For: MPET3
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Product Main Type | KTC15 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SFC151759F0001 |
| EPLAN Data | 9AAC205597_EPLAN |
| Dimensions | |
| Product Net Width | 0.07 m |
| Product Net Depth / Length | 0.001 m |
| Product Net Height | 0.07 m |
| Product Net Weight | 0.003 kg |
| Technical | |
| Accessory Type | Legend plates |
| Color | Yellow |
| Function | Legend Plate Emergency Stop D=70mm |
| Suitable For | MPET3 |
| MPEP3 | |
| MPEK3 | |
| MPET4 | |
| MPEP4 | |
| MPEK4 | |
| CE3T | |
| CE3P | |
| CE3K1 | |
| CE4T | |
| CE4P | |
| CE4K1 | |
| Suitable for Product Class | Pilot Devices |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Material | Plastic |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMT2015-005453 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| Container Information | |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 0.11 m |
| Package Level 1 Depth / Length | 0.15 m |
| Package Level 1 Height | 0.005 m |
| Package Level 1 Gross Weight | 0.035 kg |
| Package Level 1 EAN | 7320500201909 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371224 |
| E-Number (Finland) | 2325696 |
| E-Number (Norway) | 4373155 |
| E-Number (Sweden) | 3708087 |
| ETIM 6 | EC000621 - Legend plate for control circuit devices |
| ETIM 7 | EC000621 - Legend plate for control circuit devices |
| ETIM 8 | EC000621 - Legend plate for control circuit devices |
| ETIM 9 | EC000621 - Legend plate for control circuit devices |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | S |
| UNSPSC | 39122221 |
