View larger
Images are for illustrative purposes only. Please refer to data sheet for details

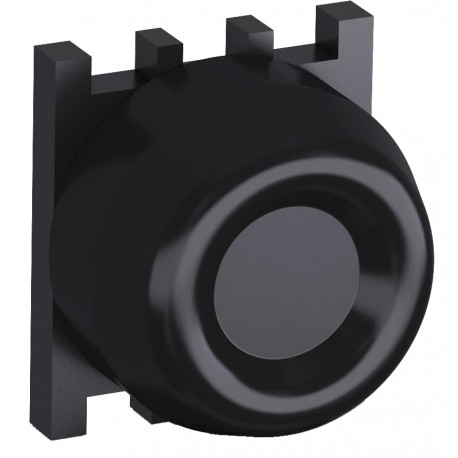

1SFA616105R4001 ABB KP6-40R Heavy Duty Pushbutton
1SFA616105R4001
616105
ABB
1 Pcs.
KP6-40R Heavy Duty Pushbutton
PULS. 30MM AMB. AGGRESSIVE RED
Automation > Front element for push button
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 0.043 m |
| Product Net Height | 0.02 m |
| Product Net Depth / Length | 0.043 m |
| Product Net Weight | 0.021 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Red |
| Actuator Type | Heavy duty rubber |
| Illumination | Non-illuminated |
| Function | Momentary |
| Enclosure Type NEMA | Type1 |
| Type3R | |
| Type4 | |
| Type4X | |
| Mechanical Durability | 2 million |
| Environmental | |
| Degree of Protection | Front IP66 |
| Terminals IP20 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMT2015-005453 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.1 m |
| Package Level 1 Depth / Length | 0.1 m |
| Package Level 1 Height | 0.02 m |
| Package Level 1 Gross Weight | 0.021 kg |
| Package Level 1 EAN | 7320500200469 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 6 | EC000221 - Front element for push button |
| ETIM 7 | EC000221 - Front element for push button |
| ETIM 8 | EC000221 - Front element for push button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Finland) | 2338455 |
| E-Number (Sweden) | 3705053 |
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Red |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30 mm |
| Type of button (EF001546) | Other |
| Suitable for lighting (EF001142) | No |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA), front side (EF011961) | 4X |
