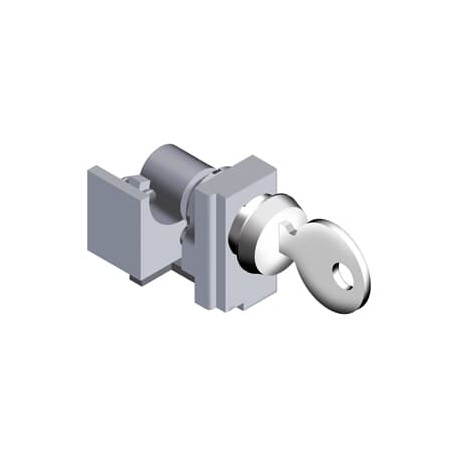

1SDA066599R1 ABB KLC XT2-XT4 KEY LOCK RONIS SE.OP.xC.BRE.
1SDA066599R1
066599
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB key lock mechanism restricts unauthorized operation of circuit breakers by enforcing strict access control over switching states. Such mechanical locking devices are standard safety additions in industrial installations to prevent accidental energization during maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXTCKLCCBDIF
- EAN: 8015644004880
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.071 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 150 mm
- Package Level 1 Height: 20 mm
- Package Level 1 Depth / Length: 200 mm
- Package Level 1 Gross Weight: 0.075 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXTCKLCCBDIF |
| EAN | 8015644004880 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.071 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 0.075 kg |
| Package Level 1 EAN | 8015644004880 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT2, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0612 |
| Classifications | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371390 |
