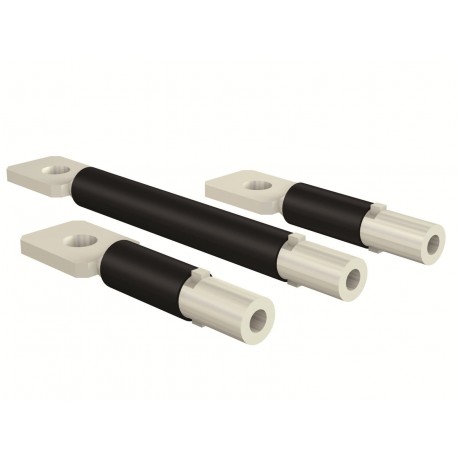

1SDA066945R1 ABB KIT R XT3 3pcs
1SDA066945R1
066945
ABB
1 Pcs.
Automation > Connection vane/phase spreader
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a rear terminal accessory set, the 1SDA066945R1 ABB KIT R XT3 3pcs adapts standard circuit breaker connections for rear-facing cable entry in electrical enclosures. Such hardware packages help panel builders organize incoming power leads and maintain safe clearance distances inside compact distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXT3ER-3PC
- EAN: 8015644008499
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.307 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 200 mm
- Package Level 1 Height: 25 mm
- Package Level 1 Depth / Length: 220 mm
- Package Level 1 Gross Weight: 0.323 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXT3ER-3PC |
| EAN | 8015644008499 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.307 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 200 mm |
| Package Level 1 Height | 25 mm |
| Package Level 1 Depth / Length | 220 mm |
| Package Level 1 Gross Weight | 0.323 kg |
| Package Level 1 EAN | 8015644008499 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT3 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0809 |
| Classifications | |
| ETIM 7 | EC002019 - Connection vane/phase spreader |
| ETIM 8 | EC002019 - Connection vane/phase spreader |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
| Object Classification Code | Q |
| UNSPSC | 39121432 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
