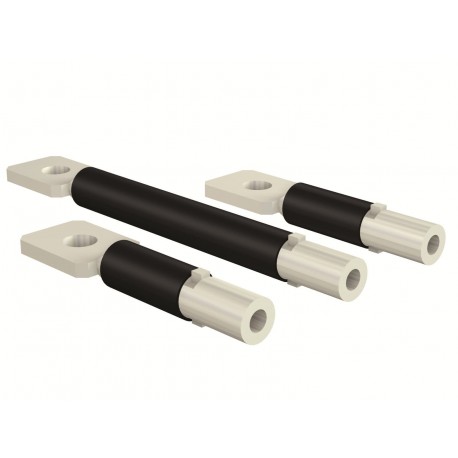

1SDA066939R1 ABB KIT R XT1 6pcs
1SDA066939R1
066939
ABB
1 Pcs.
Automation > Connection vane/phase spreader
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA066939R1 ABB KIT R XT1 6pcs provides essential rear-adaptable terminal components designed to facilitate secure rear connections for molded case circuit breakers in tight panel spaces. Hardware sets of this type allow electrical engineers to optimize wiring layouts within industrial control panels and distribution boards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXT1ER-6PC
- EAN: 8015644008437
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.443 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 200 mm
- Package Level 1 Height: 25 mm
- Package Level 1 Depth / Length: 220 mm
- Package Level 1 Gross Weight: 0.466 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXT1ER-6PC |
| EAN | 8015644008437 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.443 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 200 mm |
| Package Level 1 Height | 25 mm |
| Package Level 1 Depth / Length | 220 mm |
| Package Level 1 Gross Weight | 0.466 kg |
| Package Level 1 EAN | 8015644008437 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT1 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0809 |
| Classifications | |
| ETIM 7 | EC002019 - Connection vane/phase spreader |
| ETIM 8 | EC002019 - Connection vane/phase spreader |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
| Object Classification Code | Q |
| UNSPSC | 39121432 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
