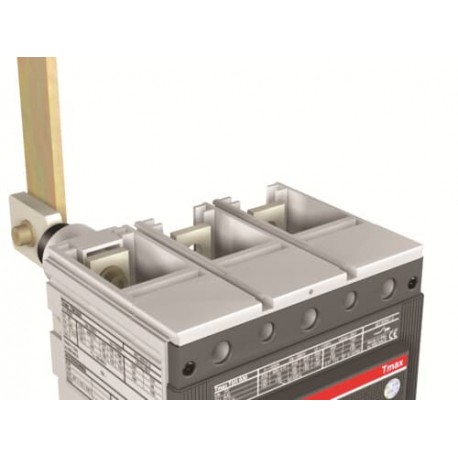

ABB 1SDA063116R1 1SDA063116R1 ABB KIT R T7-T7M-X1 3pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA063116R1 ABB KIT R T7-T7M-X1 3pcs

1SDA063116R1

063116

ABB

1 Pcs.

KIT R T7-T7M-X1 3pcs R 3UD TERMINALS - T7-T7M-X1

Automation > Connection vane/phase spreader
Accessories T7-X1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Rear terminal transition kits are applied in industrial switchboards to adapt circuit breaker connection orientations from standard configurations to rear-facing layouts, simplifying busbar integration. They provide mechanical stability and maintain clear electrical clearance inside cramped enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Order Code US and Canada: KT7R-3
  • EAN: 8015644656591
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Gross Weight: 1 kg
  • Package Level 1 EAN: 8015644656591
  • Configuration Type: Loose or configurable
  • Number of Poles: 3

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
Order Code US and CanadaKT7R-3
EAN8015644656591
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Gross Weight1 kg
Package Level 1 EAN8015644656591
Additional Information
Configuration TypeLoose or configurable
Number of Poles3
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
StandardsIEC
Suitable ForT7, X1
Suitable for Product ClassSACE Emax
SACE Tmax T
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000529R0805
Classifications
ETIM 7EC002019 - Connection vane/phase spreader
ETIM 8EC002019 - Connection vane/phase spreader
ETIM 9EC002019 - Connection vane/phase spreader
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
Object Classification CodeQ
UNSPSC39121432
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
