View larger

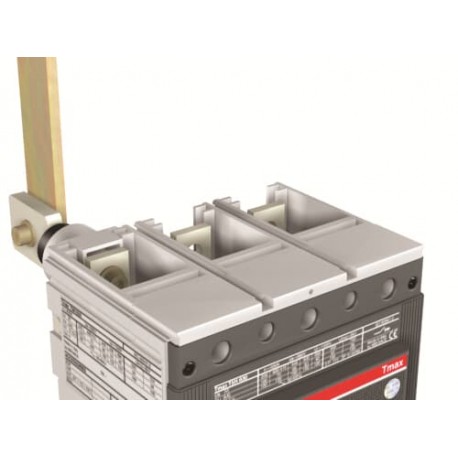

1SDA055043R1 ABB KIT R T5 8pcs
1SDA055043R1
055043
ABB
1 Pcs.
Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA055043R1 ABB KIT R T5 8pcs provides specialized rear terminal conversion hardware for molded case circuit breakers in industrial control systems. Engineers specify these terminal kits to rearrange connection points for optimized busbar routing and streamlined panel layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- EAN: 8015644561888
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 2.667 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 218 mm
- Package Level 1 Height: 112 mm
- Package Level 1 Depth / Length: 138 mm
- Package Level 1 Gross Weight: 2.7 kg
- Package Level 1 EAN: 8015644561888
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8015644561888 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 2.667 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 218 mm |
| Package Level 1 Height | 112 mm |
| Package Level 1 Depth / Length | 138 mm |
| Package Level 1 Gross Weight | 2.7 kg |
| Package Level 1 EAN | 8015644561888 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T5 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000436R0824 |
| External Classifications and Standards | |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| ETIM 10 | EC002019 - Connection vane/phase spreader |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
