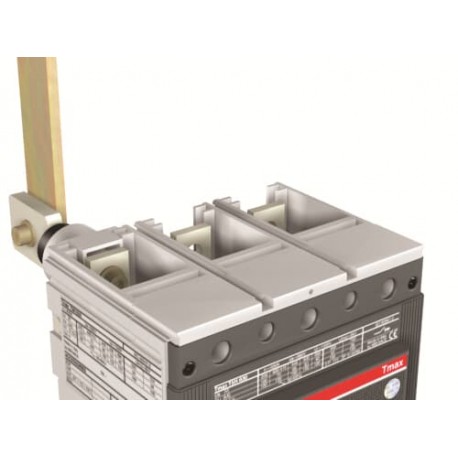

ABB 1SDA055042R1 1SDA055042R1 ABB KIT R T5 6pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055042R1 ABB KIT R T5 6pcs

1SDA055042R1

055042

ABB

1 Pcs.

KIT R T5 6pcs R 6UD - T5 TERMINALS

Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Abb KIT R T5 6pcs provides rear terminal connection hardware intended for integrating molded case circuit breakers into complex switchgear layouts. Rear-access terminals allow engineers to route power cables behind the panel enclosure for optimized space management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KT5R-6
  • EAN: 8015644561871
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 2 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 280 mm
  • Package Level 1 Height: 30 mm
  • Package Level 1 Depth / Length: 280 mm
  • Package Level 1 Gross Weight: 2 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKT5R-6
EAN8015644561871
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight2 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width280 mm
Package Level 1 Height30 mm
Package Level 1 Depth / Length280 mm
Package Level 1 Gross Weight2 kg
Package Level 1 EAN8015644561871
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT5
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
Number of Poles3P
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000436R0824
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
