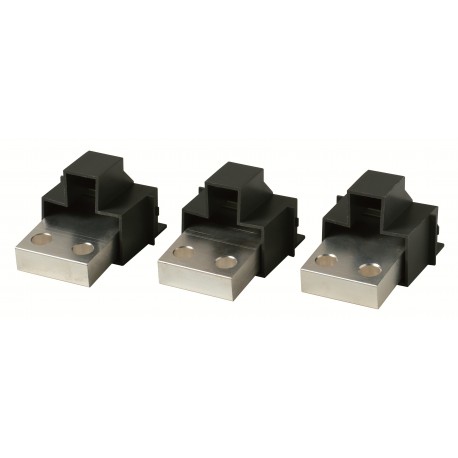

ABB 1SDA063120R1 1SDA063120R1 ABB KIT HR T7-T7M-X1 3pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA063120R1 ABB KIT HR T7-T7M-X1 3pcs

1SDA063120R1

063120

ABB

1 Pcs.

KIT HR T7-T7M-X1 3pcs HR 3UD TERMINALS - T7-T7M-X1

Automation > Connection vane/phase spreader
Accessories T7-X1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing reliable rear connections for heavy-duty industrial breakers, the 1SDA063120R1 ABB KIT HR T7-T7M-X1 3pcs serves as a horizontal rear terminal adapter kit. Electrical installers utilize such kits to transform standard device terminals, allowing seamless busbar integration in space-constrained switchboard designs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KT7XHR-3
  • EAN: 8015644656386
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 120 mm
  • Package Level 1 Height: 180 mm
  • Package Level 1 Depth / Length: 225 mm
  • Package Level 1 Gross Weight: 1.741 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKT7XHR-3
EAN8015644656386
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width120 mm
Package Level 1 Height180 mm
Package Level 1 Depth / Length225 mm
Package Level 1 Gross Weight1.741 kg
Package Level 1 EAN8015644656386
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT7, X1
Suitable for Product ClassSACE Emax
SACE Tmax T
Technical
Configuration TypeLoose or configurable
Number of Poles3P
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000529R0805
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
Object Classification CodeQ
UNSPSC39121432
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
