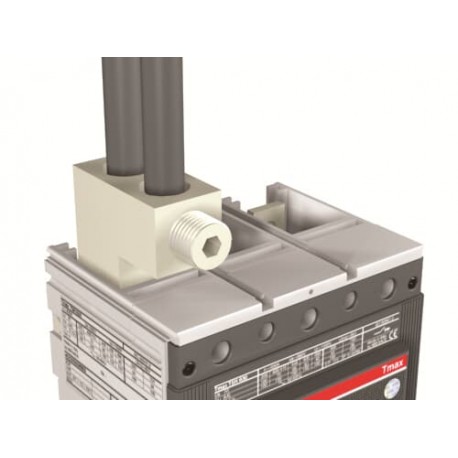

ABB 1SDA023380R1 1SDA023380R1 ABB Front terminals for cables in copper-aluminium three-pole s6 400-630 t6 630 2x240mm2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA023380R1 ABB Front terminals for cables in copper-aluminium three-pole s6 400-630 t6 630 2x240mm2

1SDA023380R1

023380

ABB

1 Pcs.

Front terminals for cables in copper-aluminium three-pole s6 400-630 - t6 630 2x240mm2 FC CuAl 2x240mm2 3UD - T6 630 TERMINALS KIT FC CuAl 2x240mm2 T6 630-S6 630 3pcs

Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured for high-current copper-aluminum cabling, the ABB 1SDA023380R1 front terminals component provides reliable termination points for multi-pole heavy-duty circuit protection devices. Such hardware is commonly deployed in commercial and industrial power distribution systems to safely interface large conductors with switchgear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • EAN: 8015644233808
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.323 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 130 mm
  • Package Level 1 Height: 35 mm
  • Package Level 1 Depth / Length: 200 mm
  • Package Level 1 Gross Weight: 0.34 kg
  • Package Level 1 EAN: 8015644233808

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
EAN8015644233808
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.323 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width130 mm
Package Level 1 Height35 mm
Package Level 1 Depth / Length200 mm
Package Level 1 Gross Weight0.34 kg
Package Level 1 EAN8015644233808
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForS6
T6
Suitable for Product ClassSACE Tmax T
SACE Isomax
Technical
DeviceS6 630 (2x240 mm2)
Number of Poles3P
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000479R0824
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
