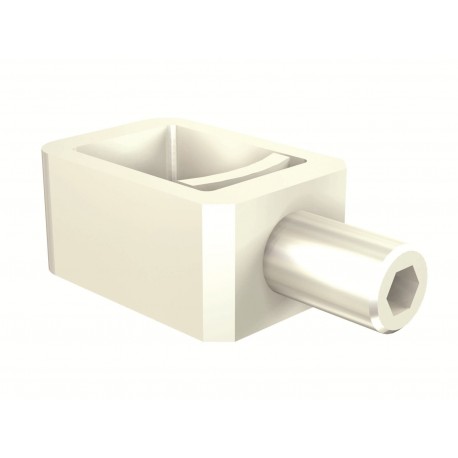

ABB 1SDA067153R1 1SDA067153R1 ABB KIT FC CuAl 1x1,5...50mm2 XT1 6pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA067153R1 ABB KIT FC CuAl 1x1,5...50mm2 XT1 6pcs

1SDA067153R1

067153

ABB

1 Pcs.

KIT FC CuAl 1x1,5...50mm2 XT1 6pcs FC CuAl TERMINALS 1x1.5-50mm2 6UD - XT1

Automation > Connection vane/phase spreader
Accessories XT1-4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB KIT FC CuAl 1x1,5...50mm2 XT1 6pcs (1SDA067153R1) is a circuit breaker terminal kit utilized to connect power cables securely to switchgear assemblies. Such copper-aluminum terminal components provide reliable mechanical and electrical interfacing within industrial distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • EAN: 8015644010478
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.111 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 230 mm
  • Package Level 1 Height: 20 mm
  • Package Level 1 Depth / Length: 230 mm
  • Package Level 1 Gross Weight: 0.117 kg
  • Package Level 1 EAN: 8015644010478

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
EAN8015644010478
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.111 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width230 mm
Package Level 1 Height20 mm
Package Level 1 Depth / Length230 mm
Package Level 1 Gross Weight0.117 kg
Package Level 1 EAN8015644010478
Additional Information
Configuration TypeLoose or configurable
Number of Poles3
Order Multiple1 piece
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
StandardsIEC60947-2
Suitable ForXT1
Suitable for Product ClassSACE Tmax XT
Terminal Connection TypeFront for Copper-Aluminium Cables
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0205
1SDC210099D0205
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000719R0806
Classifications
ETIM 7EC002019 - Connection vane/phase spreader
ETIM 8EC002019 - Connection vane/phase spreader
ETIM 9EC002019 - Connection vane/phase spreader
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305

Product Datasheet
