View larger
Images are for illustrative purposes only. Please refer to data sheet for details

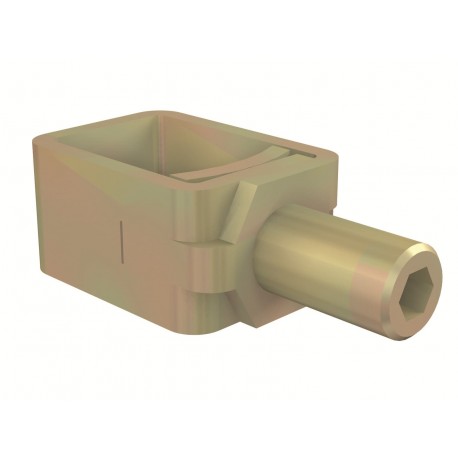

1SDA066918R1 ABB KIT FC Cu XT4 4pcs
1SDA066918R1
066918
ABB
1 Pcs.
KIT FC Cu XT4 4pcs
FC Cu 4UD TERMINALS - XT4
Automation > Connection vane/phase spreader
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXT4ECU-4PC |
| E-Number (Finland) | 3642295 |
| EAN | 8015644008222 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.223 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Height | 25 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 0.235 kg |
| Package Level 1 EAN | 8015644008222 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Standards | IEC60947-2 |
| Suitable For | XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Terminal Connection Type | Front for Copper Cables |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0807 |
| Classifications | |
| ETIM 7 | EC002019 - Connection vane/phase spreader |
| ETIM 8 | EC002019 - Connection vane/phase spreader |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
| Object Classification Code | Q |
| UNSPSC | 39121432 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
